Detail


Safety Warnings

·       Danger! Users of thisequipment must be trained, certified/ licensed, and evaluated byaccredited organizations

·       Do not operate this equipment until you are sure thatyou are completely familiar with the safe operation of the equipment,

allaccessories, and safety equipment. Improper use can lead to severe injury. Thismanual defines the proper use of this equipment. Before using this

equipmentfor any other use, please consult Eaglotest. Contact Eaglotest if you do notunderstand any procedure or operation concerning

this equipment or this manual.

·       Beforeusing the instrument, make sure that the instrument, accessories, as well asthe insulation layer of the test leads, are in good

condition. Do not use theinstrument if it is damaged, exposed, or broken in any way.

·       Pleasebe aware of the surrounding environments and the measurement range of theinstrument.

·       Pleasedo not press 2 or more buttons on the instrument at the same time, as it is aninvalid command.

·       Toensure the accuracy of the measurements, please connect the I1, I2, I3 clamp toits respective port.

·       DONOT use the instrument on conductors that exceed 1000V or 500A.

·       Donot use the instrument if the battery cover is not properly secured.

·       Ensurethe test leads are securely plugged in.

·       Donot replace the battery in environments with high humidity.

·       Donot use the instrument in hazardous environments.

·       Thetest leads must be removed from the conductor before removing from theinstruments. Do not touch the output ports, as it may

cause an electric shock.

·       Donot use the instrument in environments with a strong electromagnetic field,this will interfere with the instrument.

·       Pleasestop using the instrument immediately if the housing or test lead is exposed.

·       Theinstrument must not be used if any part is damaged.

·       Do not place or store theinstrument in places with high temperature, humidity, condensation, or underdirect sunlight.

·       Theclamp jaws of the instrument must be periodically cleaned and inspected, do notuse clean the clamp jaws with corrosive or

abrasive material.

·       Pleasehandle the instrument with care.

·       Ifthe instrument is not in use for a long period, please remove or charge thebattery periodically to ensure the battery’s proper

function.

·       Please be aware of thepolarity when replacing the battery. Please contact Eaglotest if the batterycannot be replaced.

·       Disassemble and periodicmaintenance of this instrument must be operated by authorized personnel.

·       Stop using the instrumentimmediately in case of any danger caused by continued usage of it. Pleasesafely seal the equipment and hand it to an authorized organization to disposeof it.

Introductions

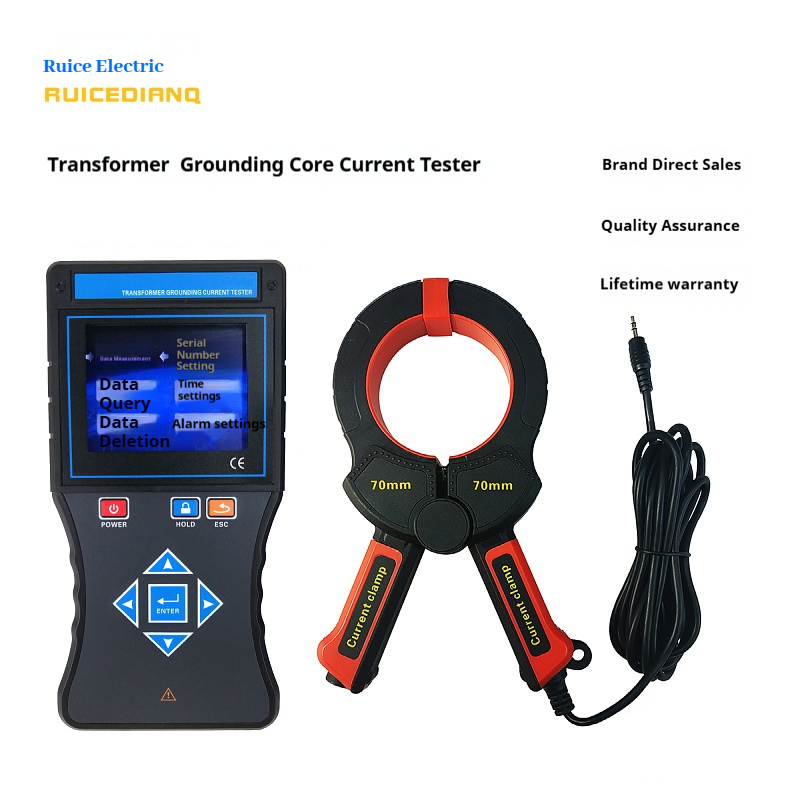

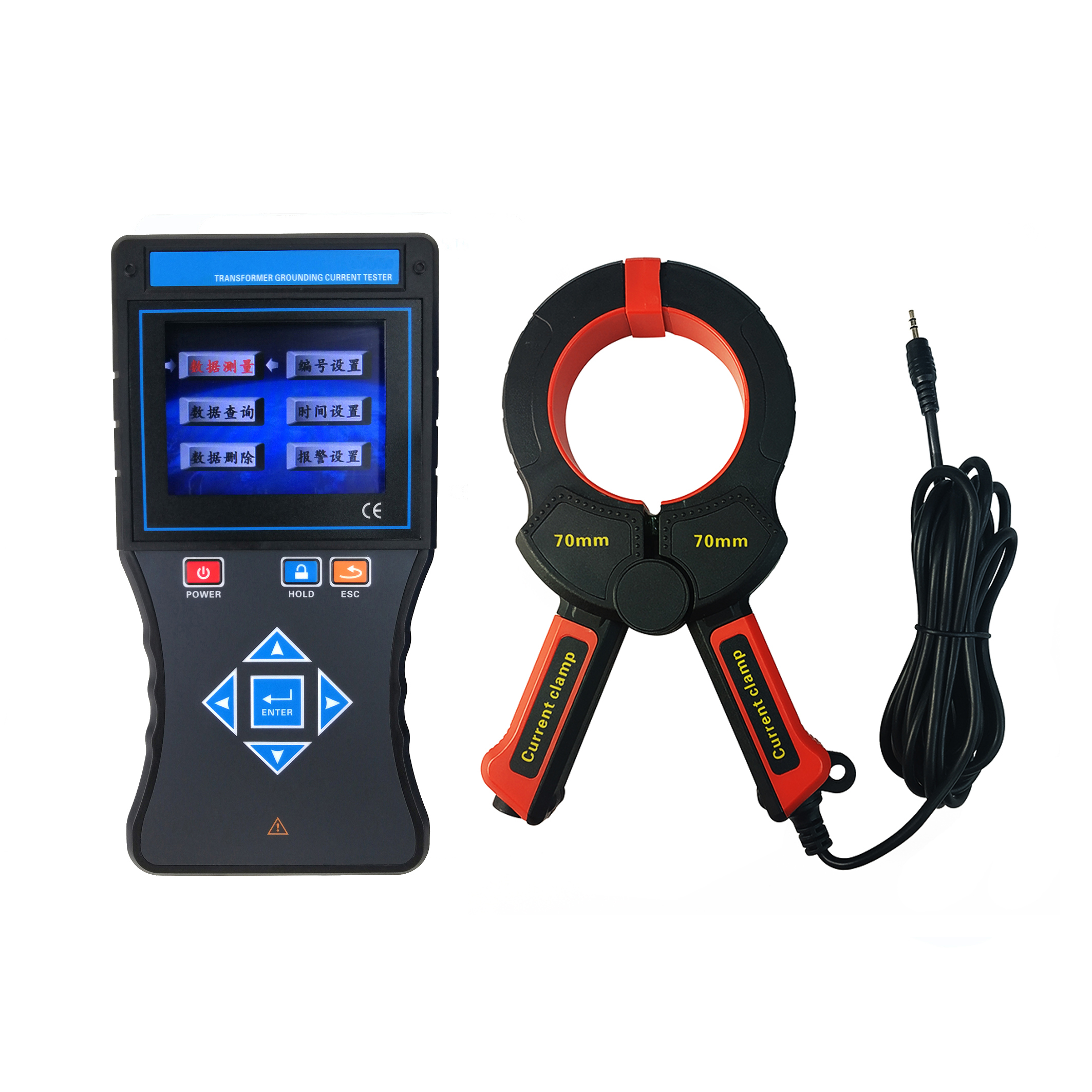

The RC150 AC Leakage Current Detector is a

highprecision currentdetector. In any electrical installation, some current will flow through theprotective insulation layer to the ground. This is

usually called leakagecurrent. However, leakage current can be very dangerous if it exceeds thepermissible safe limit. Not only it may cause the equipment to overload andmalfunction, but also it may cause harm to people. The S150 helps the userquickly identify, locate, trace as well as monitor the leakage current toprevent these preventable problems all without taking equipment offline.


The iron core of the current sensor is made outof nickel alloy, with high magnetic permeability and high linearity, able to conductaccurate yet

precise tests, while at the same time not affected by other external magnetic fields.


It can be used to measure current, leakagecurrent, frequency, and conduct waveform analysis. It is highly accurate with0.1mA resolution, so it

can be used even in settings such as measuring theleakage current of the transformer core ground


Specifications

Baseline and operating conditions

Factors

Baseline

Conditions

Operating  Conditions

Remarks

Temperature

23℃±1℃

-10℃~40℃

/

Humidity

40%~60%

<80%

/

Frequency

50Hz±1Hz

10Hz~1000Hz

/

Instrument  working voltage

7.4V±0.5V

7.4V±1V

/

Current range when

measuring waveforms

/

10mA~500A

/

External Electric Field and

Magnetic Field

Should be  avoided

Position of  Conductor

The conductor should be placed in the middle  of the

clamp.

General specifications

Functions

AC current,  frequency, and waveform analysis

Power

DC 7.4V, 3000mAh  rechargeable Li-battery, USB charging port

Rated Current

Approx. 180mA max

Display

3.5-inch true  color LCD display

Dimension

Host:  207mm×101mm×45mm

Current  clamp:  235mm×145mm×38mm

Jaw Size

Φ70mm

Measuring Range

Current: 0.1mA~500.0A(50Hz/60Hz)

Frequency: 10Hz~1000Hz

Resolution

AC 0.1mA

Accuracy

0.1mA~20.00mA   ±5%±3dgt

20mA~2.00A    ±2%±5dgt

20.0A~500.0A    ±2%±5dgt

Detection Rate

Approx. 2 sec/time

Data Hold

Press HOLD to  hold and save the data displayed as “HD”

Data Storage

200 sets

Lcd Brightness

LCD backlight  brightness can be adjusted by pressing up and down arrows

Alarm Warning

Range of alarm  threshold value setting: 10mA~30.00A

Overload Warning

When the  measured value exceeds the measurable

range of the instrument, the LCD  flickers, and the

buzzer beeps

Low Battery Warning

When the  battery voltage is low, the low battery sign will be displayed, please charge  the battery when possible

Automatic Shutdown

The instrument  will shut down automatically after

standing by for 30 minutes

Weight

Host:425g (including battery)

Current clamp: 556g

Total weight: 981g

Charging Port

USB port

Clamp Wire Length

2m

Ideal Working Conditions

-10℃ ~ 40℃;  below 80%Rh

Ideal Storage Conditions

-10℃ ~ 60℃;  below 70%Rh

Electric Field Interference

Approx. 40mA when outer  electric field 100A is

close as 10mm

Withstand Voltage

Withstand 1000V/50Hz sine wave AC voltage

between the instrument  circuit and the shell

for 1 minute

Dielectric Strength

Between instrument circuit and sheath ≥100MΩ

Safety Standards

IEC61010-1 CAT Ⅲ 600V, EC61010-031, IEC61326, Pollution Class II

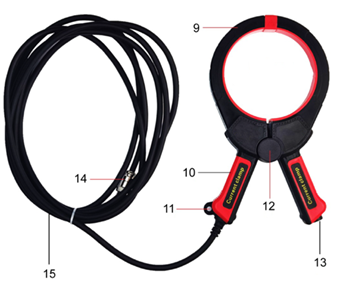

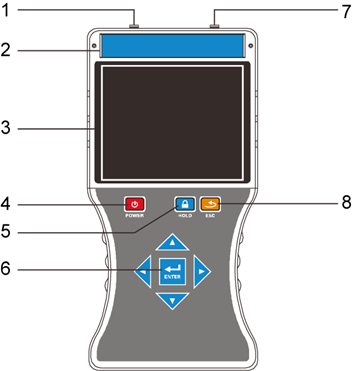

1.      Charging Port              2.      Product Model         3.       LCD

4.      Power Button              5.       HOLD Button           6.       Arrow & Enter Buttons

7.      Current Input Jack       8.       ESC Button              9.       Clamp

10.    Handle                       11.    Rope Slot                12.    Clamp’s Open/Close Axis

13.    Insulating Rod Attachment Point       14.    Connector           15.    Lead



Basic operations

Press the POWER button to turnon and off the instrument. If the LCD keeps flickering after turning on, thebattery level may be low.

Please replace the battery and press the POWER buttonto turn it off. The instrument will automatically shut down after 30 minutes ofinactivity, press any buttons to cancel the automatic shutdown.


After the instrument has been turned on, the users will be able toselect testing, view data, delete data, numbering setting, clock setting,

andalarm setting. Press the left and right arrows to select, and press ENTER toconfirm. Press the ESC button to return to the previous page.


On the testing page, it will display information such as current,frequency, waveforms, numberings, and time. Press the HOLD button to lock andsave the data and the HD symbol will be displayed, press the button again tocancel the hold. The saved data are automatically numbered, for example, S:001,up to 200 sets of data can be saved. Also, the users can press the up and downarrows to adjust the LCD backlight brightness.


On the view data page, the RD symbol will be displayed, press the leftor right arrows to increase or decrease the step value (1, 10, 100), press

theup and down arrows to browse the data.


On the delete data page, press the left and right arrow to select, andpress ENTER to confirm (all data will be deleted). Once the data is deleted, itcannot be recovered, please operate with caution.


On the numbering settings,time settings, or alarm settings pages, users will be able to select eachsetting using the left and right arrows, and the up and down arrows to adjustthe value. Press the

ESC button to return to the previous page.

A USB communication comes with this instrumentset, it can be used to upload saved data onto a computer. Which can then besaved,

organized, or printed. The saved data can be saved in Txt or Excelformat.


Testing

Caution

Danger:  electricity!It must be operated by trained  and authorized personnel. The operator must strictly abide by

the safety  rules, otherwise, there is a danger of electric

shock, causing severe personal injury or equipment

damage.

DO NOT use it on cables that exceed 1000V

Connect the CT clamp to the instrument, turn onthe instrument and enter testing mode.


Use the clamp and clamp onto the circuit thatneeds to be tested. The data should immediately appear on the instrument,however, if it displays OL, then the circuit has exceeded that measurable rangeof the instrument.

The waveforms displayed on theinstrument are automatically enhanced/zoomed in, therefore the current cannotbe judged based on the

amplitude of the waveform;


Before measuring the lowcurrent (0.1mA~1.00A), to ensure the accuracy of the measurement, the clampmust be manually opened and closed

twice. After the instrument display currentvalue is less than 10.0mA, then clamp on to the core or wire for measurement;


When measuring low currents (0.1mA~1.00A), due to the magnetic leakage ofthe current clamp, the current value will decrease with time

during themeasurement process, resulting in an inaccurate measurement.Therefore, the most accurate result is when the data is stable for

around 5seconds. To obtain accurate results again, please remove the clamp from thecircuit being tested and clamp onto it again.

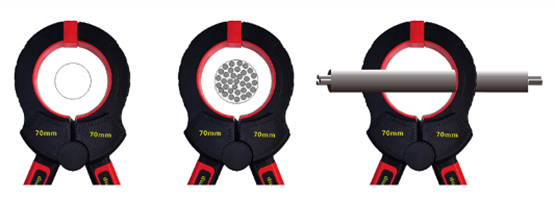

When testing, the conductor should be positionedat the middle of the clamp. (when measuring low current, the readings willdiffer based on

the position in the clamp)

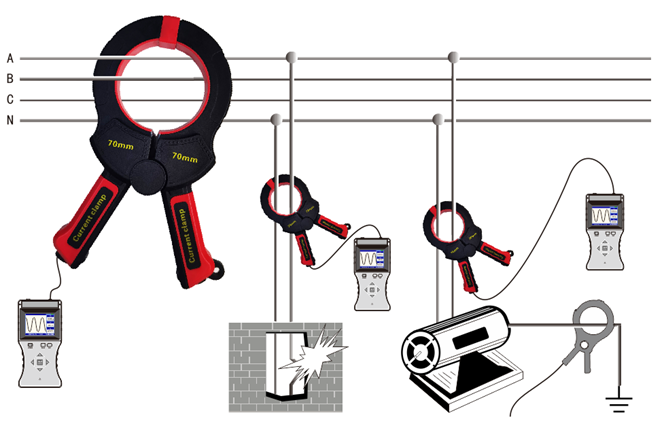

Wiring reference diagram:


Cautions

Clamp the ground wire to measure the leakage current of  the ground wire of the electrical equipment. (clamp only 1 wire).

Clamp the hot wire or the neutral wire alone to measure  the current of the specific circuit (clamp only 1 wire).

Clamp the live wire and the neutral wire together to  measure the single-phase leakage current (clamp 2 wires).

Clamp the three-phase 3-wire together to measure the  leakage current of the three-phase 3-wire (clamp 3 wires).

Clamp the three-phase four-wire together to measure the  leakage current of the three-phase four-wire (clamp 4 wires).

Clamp the three-phase five-wire together to measure the  leakage current of the three-phase five-wire (clamp 5 wires).


For your safety, when measuring high voltage and large  current, after operating the testing correctly, please remove the

instrument  away from the conductor under test


Battery Warnings

·       Pleasecharge the battery when the battery is low and charge the battery every 3months even if the equipment is not being used, this is to ensure the battery’sproper function in the future.

·       Warning!If the battery cover cannot be securely fit on the instrument, please do notuse the instrument, as it is highly dangerous.

·       Pleasebe aware of any damages to the battery. Once the structural integrity of thebattery is compromised or any internal parts of the

battery are exposed, stopusing the instrument immediately.

·       Pleasebe aware of batteries ’polarity when replacing the batteries, otherwise, it maydamage the instrument.

·       Whenthe instrument is low in battery, please charge the instrument.

·       Whenthe battery requires replacement, please make sure the instrument is poweredoff, then loosen the screw of the battery cover to

remove the cover. Place thenew batteries in the instrument and once the new batteries are securely fit inthe instrument with the correct

polarity, close the battery cover plate, andtighten the screws.

·       Ifthe battery cannot be replaced, please contact Eaglotest.

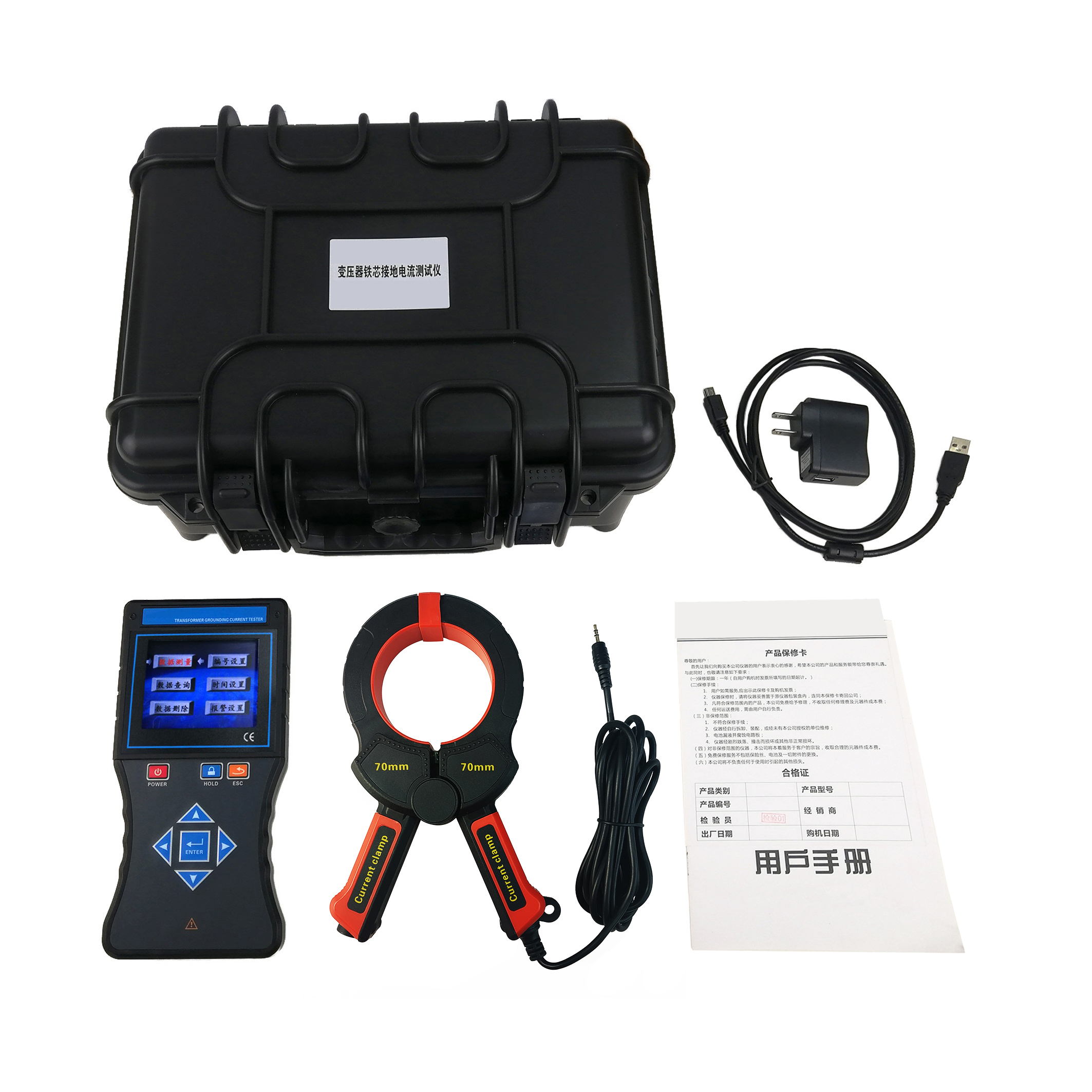

Packing List


Instrument

1

Toolbox

1 pc

Clamp

1 pc

USB Charger And Cable

1 set

Li-Battery

1 pack (in the instrument )

User Manual, Warranty

Card, Certificate Of Conformity

1 copy of each
