Performance characteristics | |||
Portable design | The instrument is lighter and easy to carry and use | ||
Fast gas saving | When the machine is turned on, it can quickly reach the dew point saturation state without preheating, and the air consumption is only about 2L (101.2kpa). | ||
Safe and reliable | The self-locking connector imported from Germany is safe and reliable without air leakage | ||
Mass storage | With large capacity design, it can store up to 50 groups of test data | ||

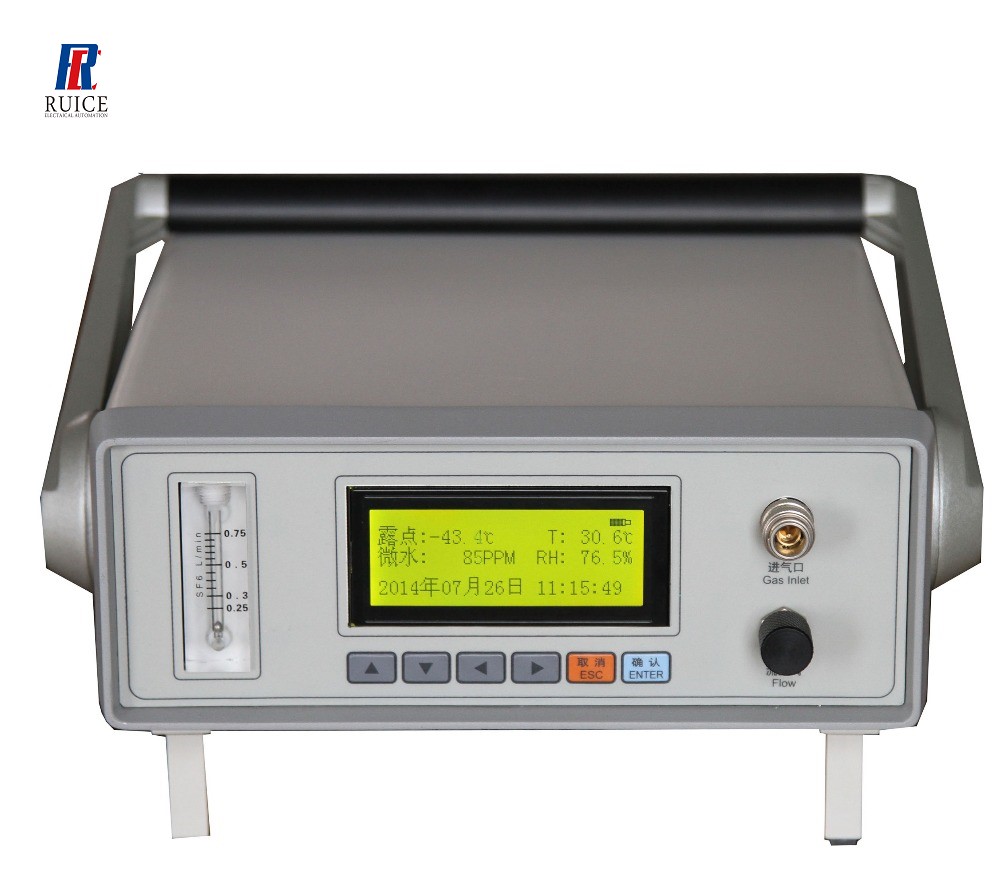

Show intuition | Show intuition LCD screen displays dew point, micro water, ambient temperature, ambient humidity, time and date, battery power, etc. | ||
Mobile measurement | Built in high-capacity lithium battery, 10 hours each time. Measurement accuracy of Fourier transform profilometry The temperature | ||
Measurement accuracy of Fourier transform profilometry | The temperature compensation function is added to ensure the accuracy of measurement results under various temperature conditions. | ||
Product technical parameters | |||
the dew point | measuring range | -60℃ ~ + 20 ℃ | |
measurement accuracy | ±2℃(-60℃ ~ + 20 ℃) | ||
Measurement | time < 3 minutes | ||
ambient temperature | -40 ℃ ~ +60 ℃ | ||
ambient humidity | 0 ~ 100% RH | ||
Power Supply | AC 220V / built-in rechargeable battery: it can be used for more than 10 hours after charging for 20 hours | ||
weight | 3Kg | ||
size | 250mm * 100mm × 300mm | ||
working temperature | -4at0 ℃ ~ +80 ℃ | ||
