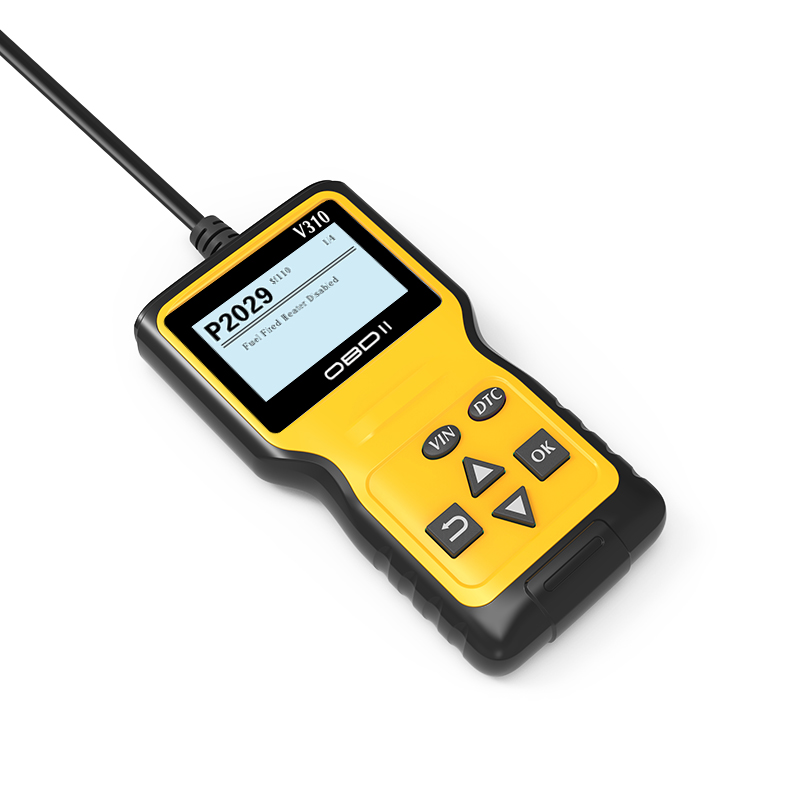

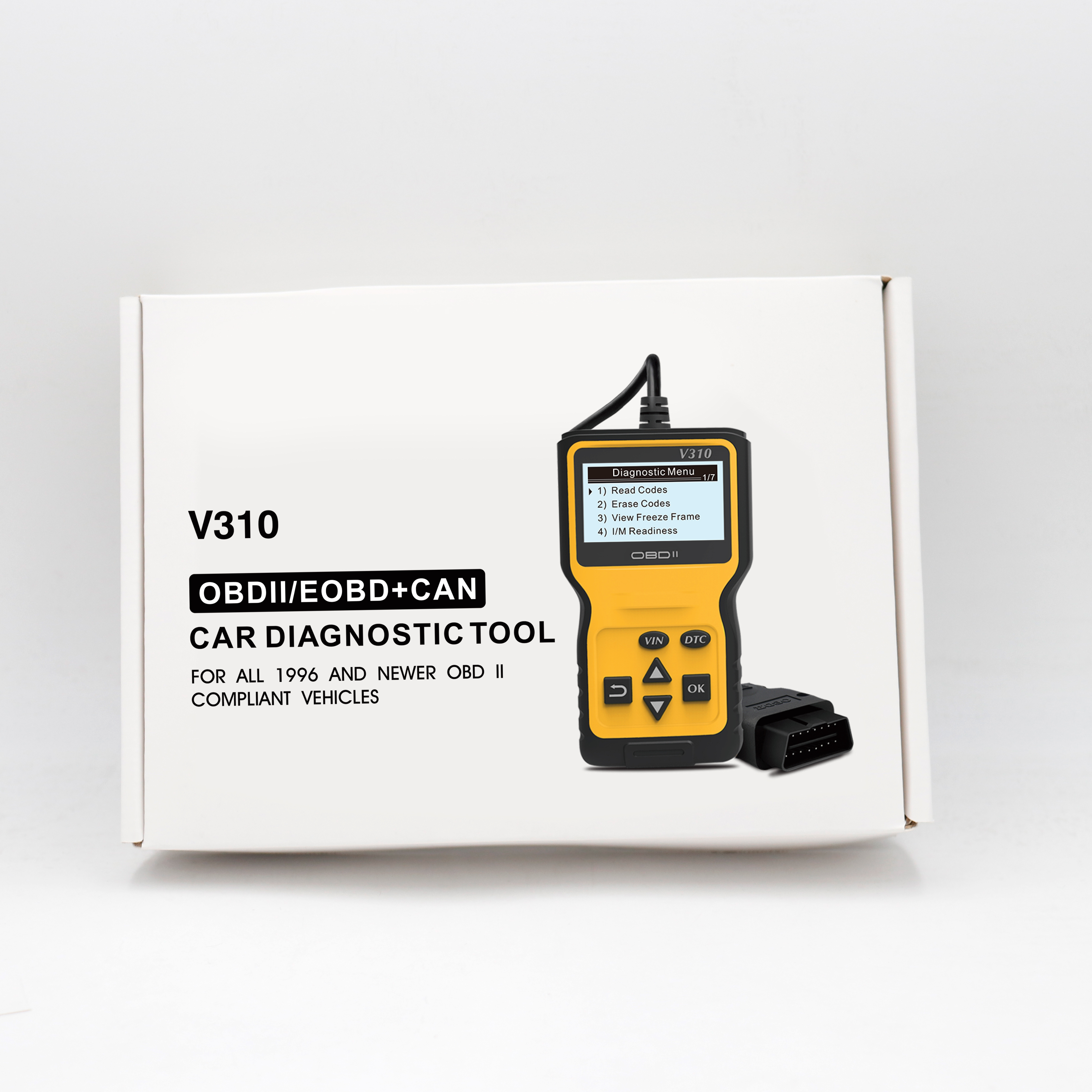

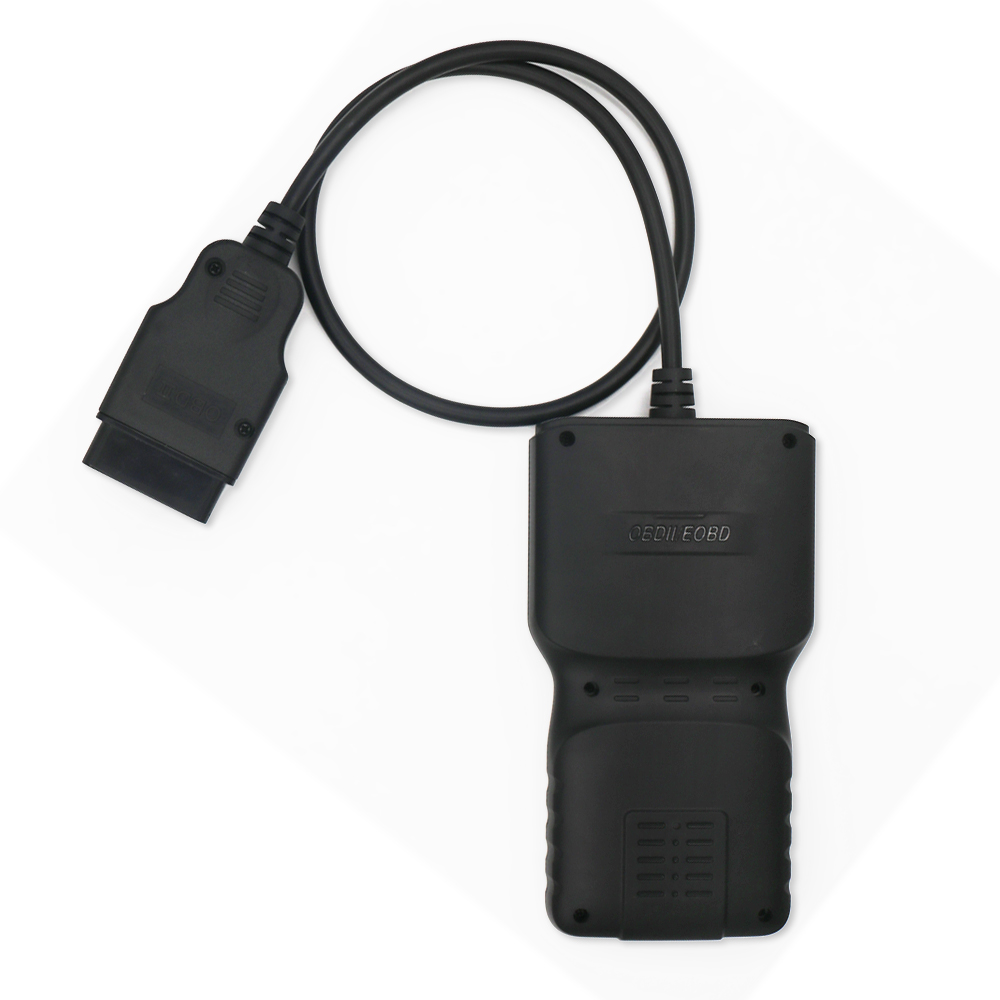

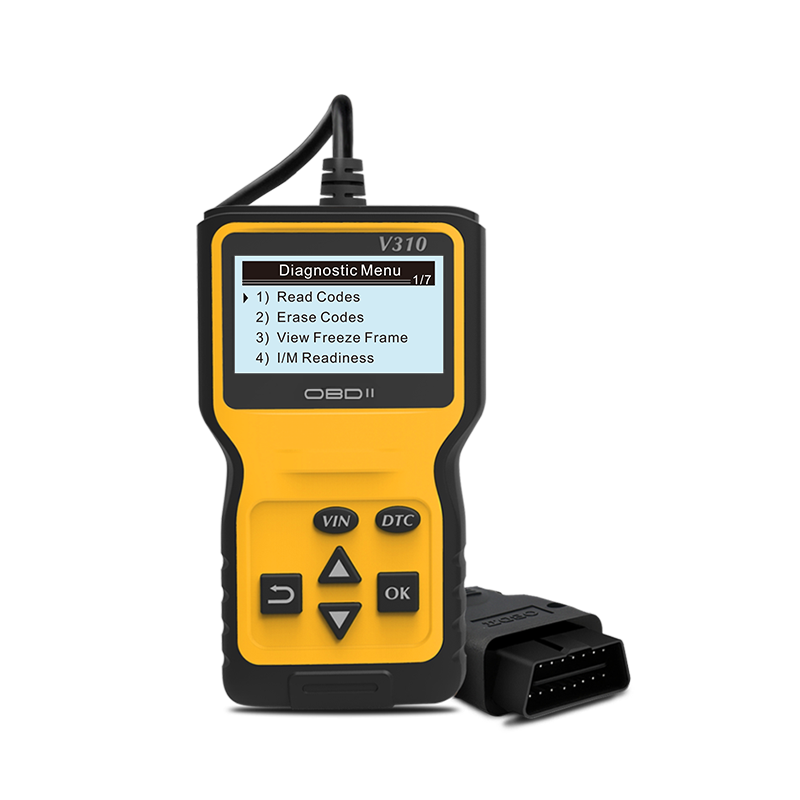

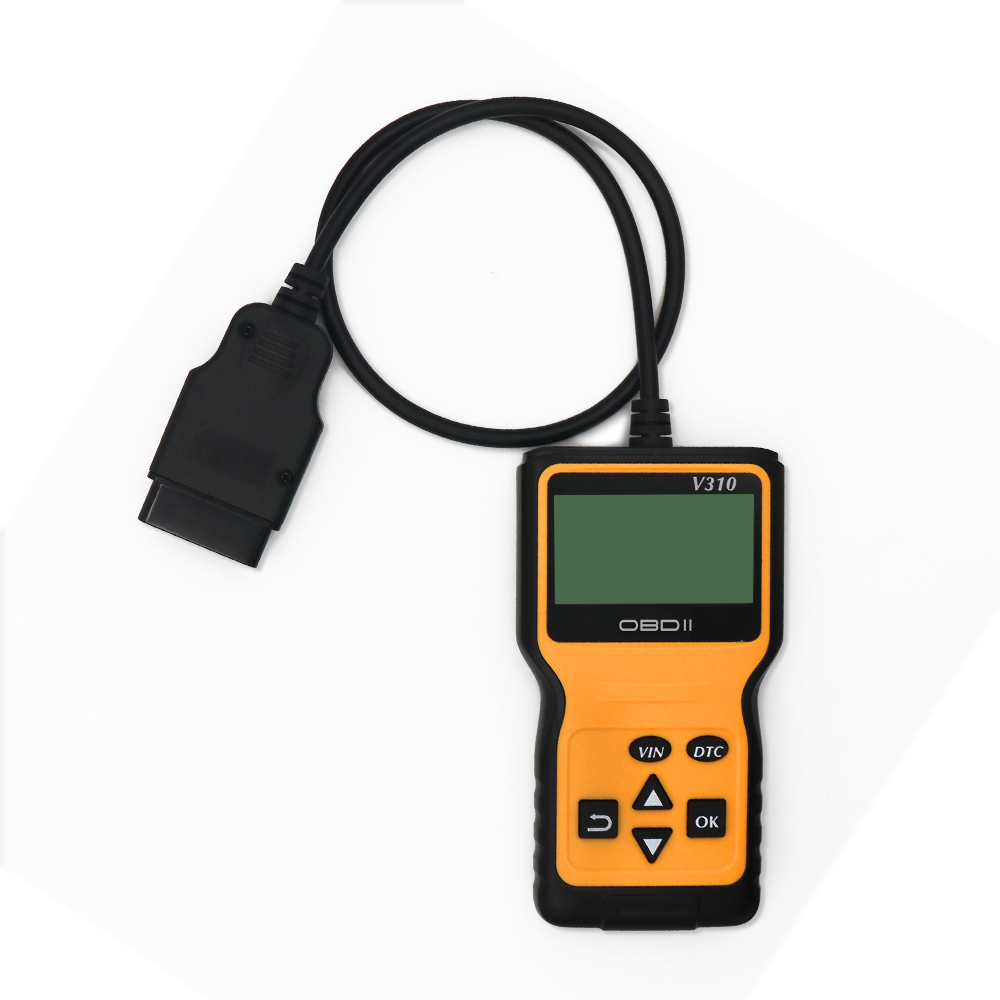

Hot Sales V310 Handheld Can Diagnostic Tool Diagnostic Inspection Tool Car Engine Fault Code Reader

WeChat

Sina Weibo

QQ space

Douban

Baidu Post Bar

Detail

Product Description

Product Name	V310
Material	ABS
Screen size	2.8inch （128*64 pixel display）
Product Size	1558525mm
Package dimensions	20013043MM
Weight	318g
Packing quantity	40/box
Operating Voltage	8-15.5V
Language	English German French Spanish Italian Dutch
Supporting agreement	1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2(5 baud init, 10.4Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

1.Functions:

1: Read diagnostic trouble codes, both generic andmanufacturer-specific, and display their meaning (over 3000 generic code
definitions in the database).
2: Clear trouble codes and turn off the MIL ("Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
