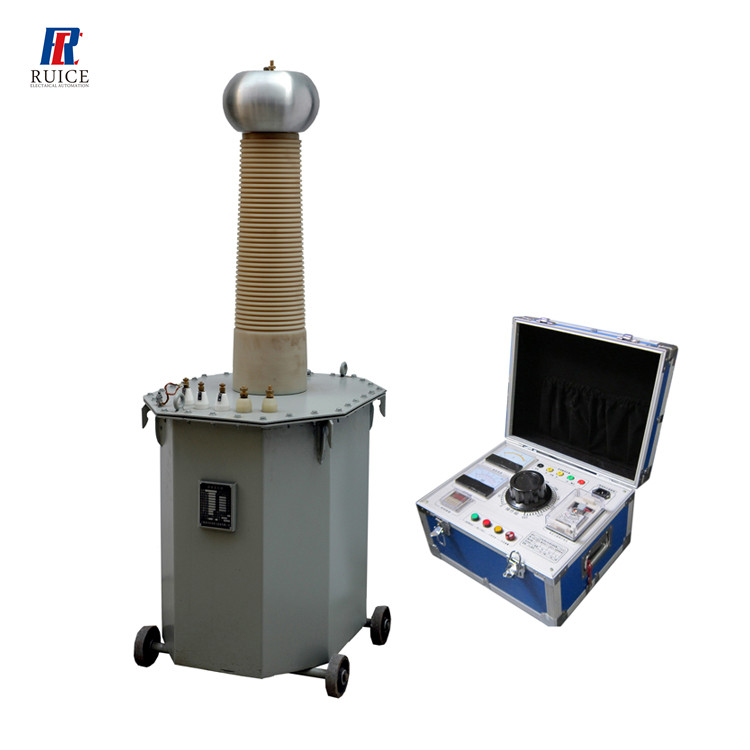

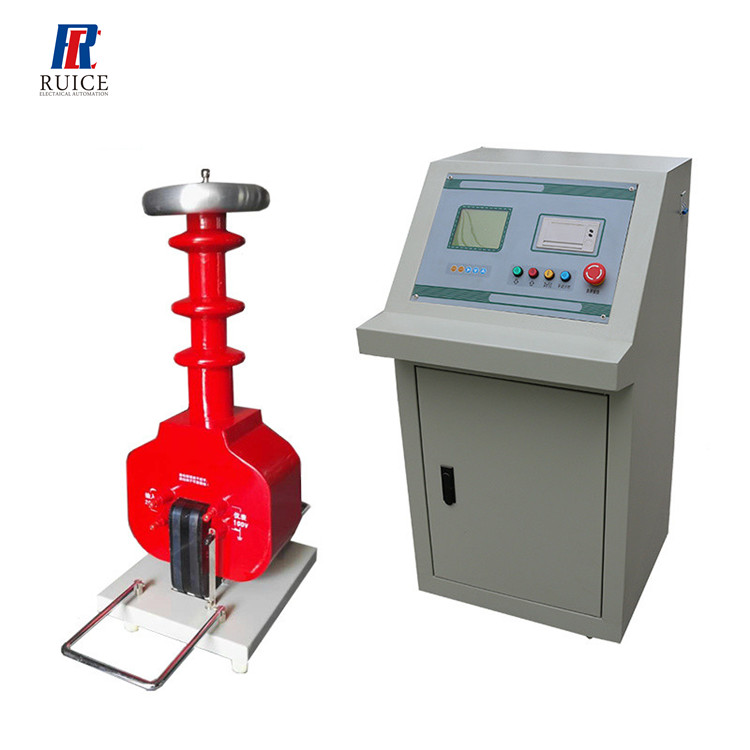

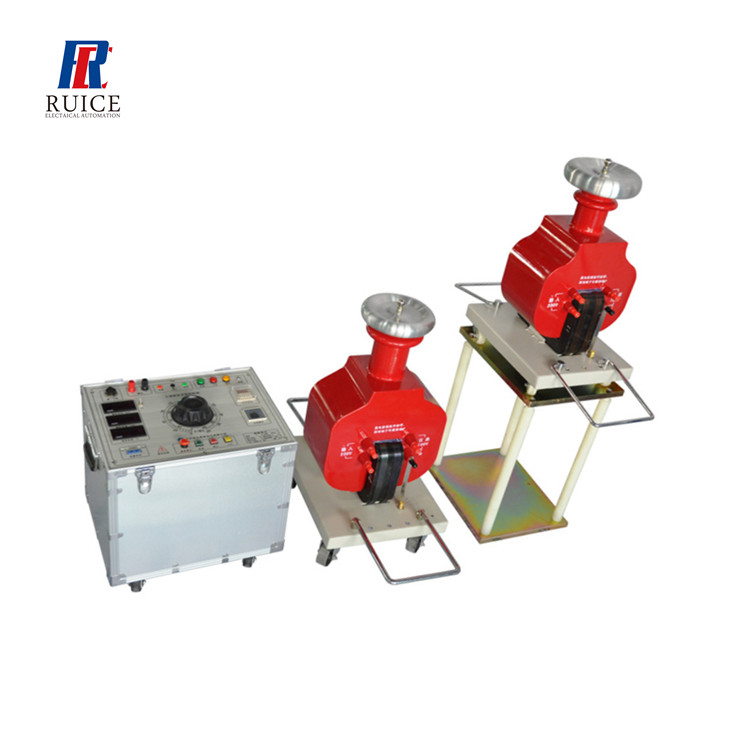

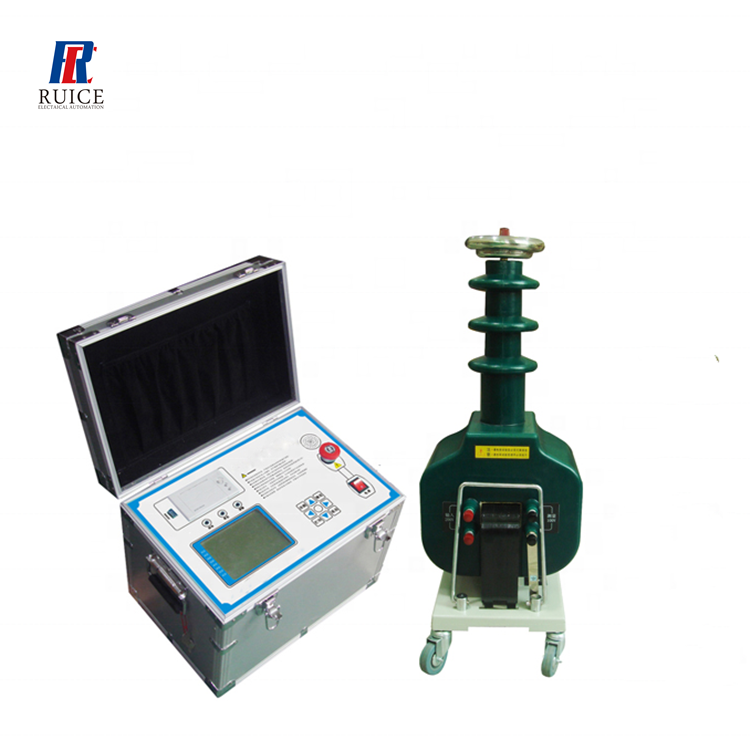

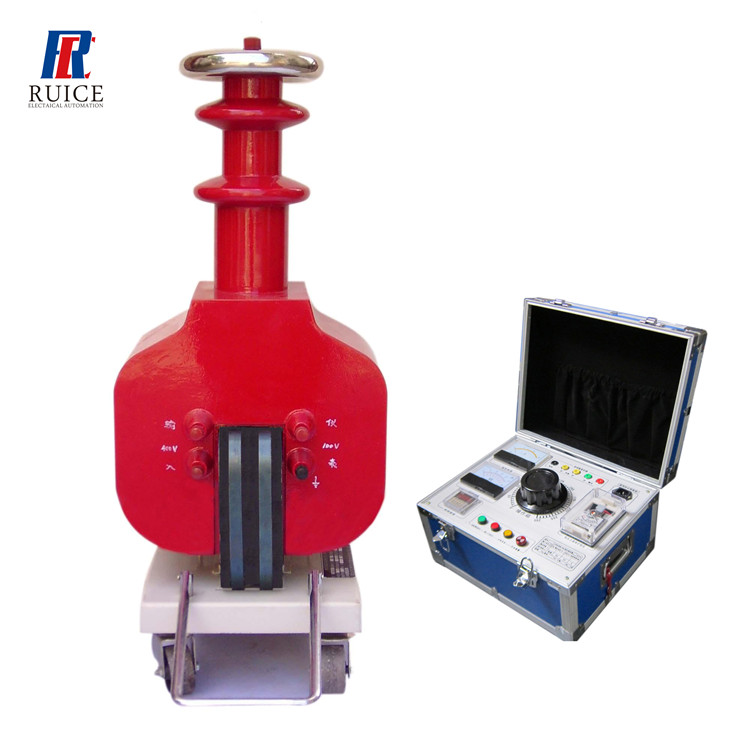

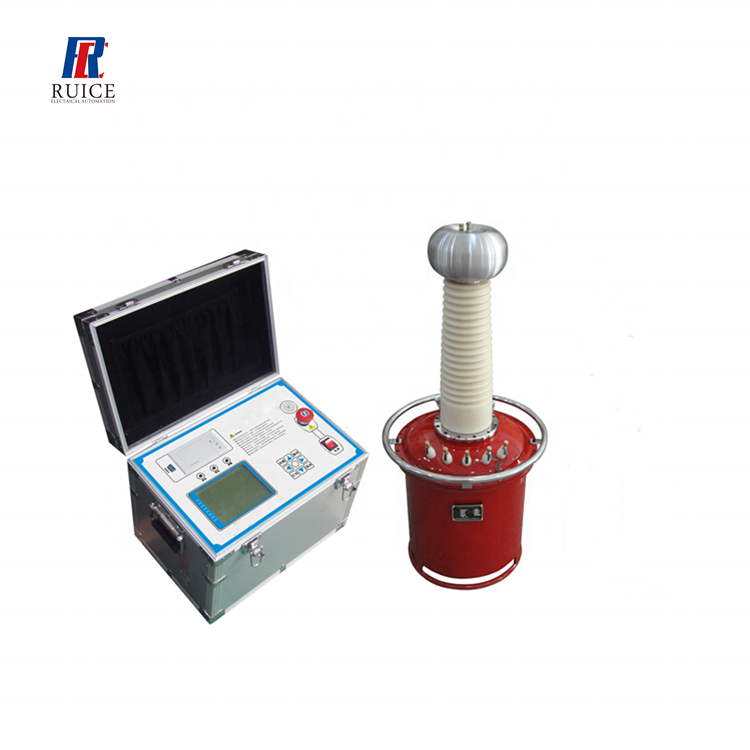

3 phase AC DC hi-pot test set power-frequency withstand voltage tester dry type 100kv testing transformer
3 phase ACDC hi-pot test set power-frequency withstand voltage tester dry type 100kvtesting transformer
Technical Data
transformer and ac dielectrictest system Description

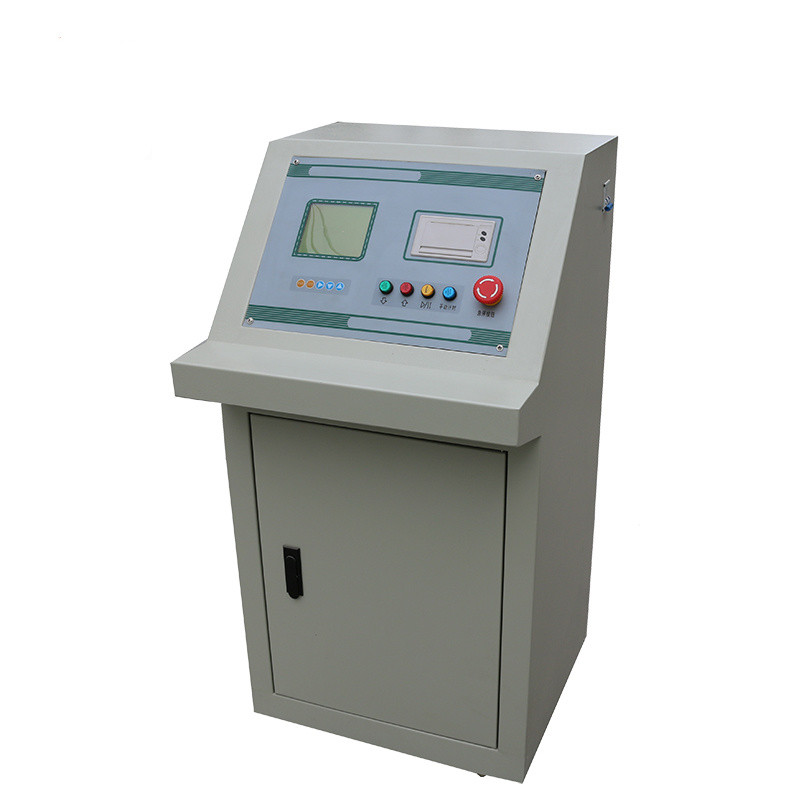

TC series control station is a complete set ofequipment of high voltage test transformer, it and the test transformer carryout resistance pressure and leakage test.
This series control station is consists oftouch type voltage adjustor and circuit on control, measure and signal.
transformer and ac dielectrictest system Technical Data

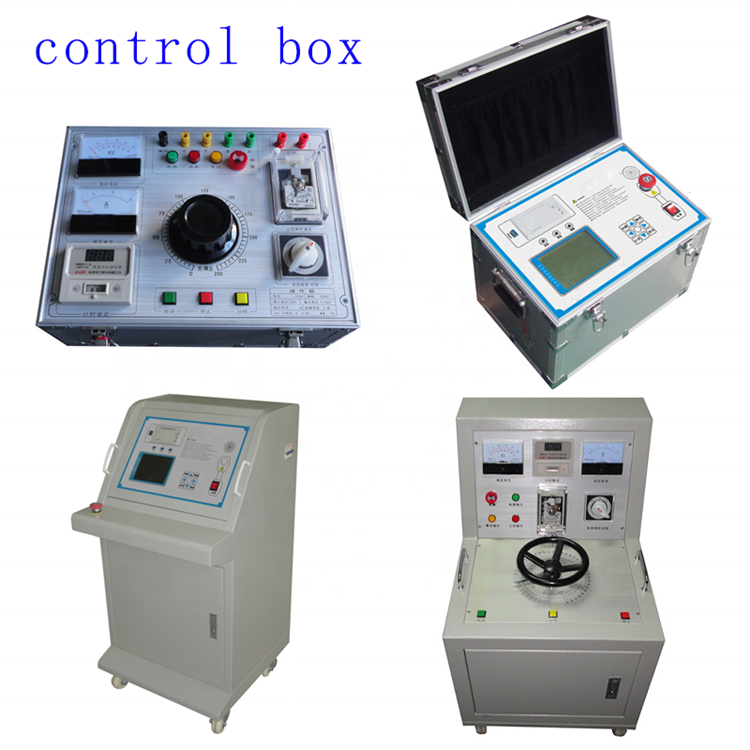

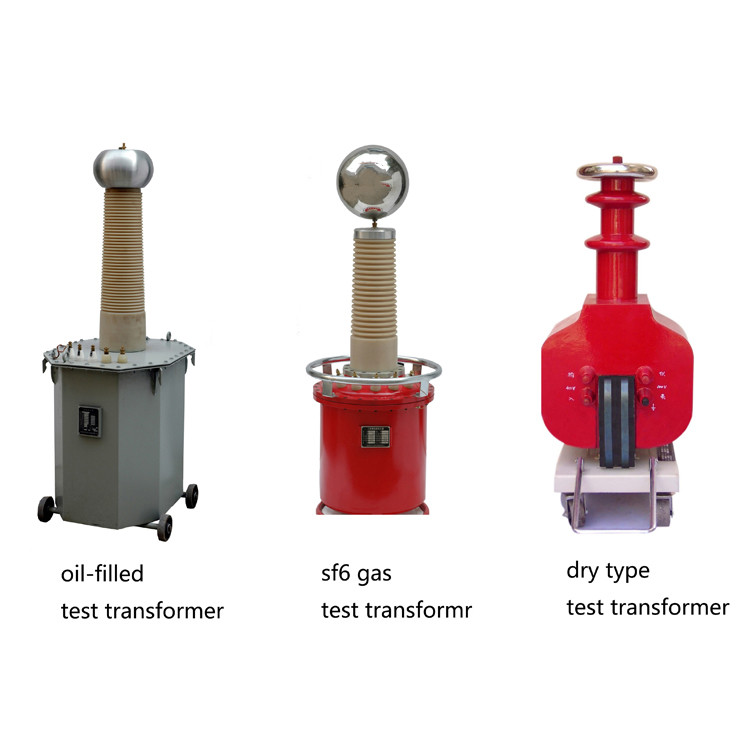

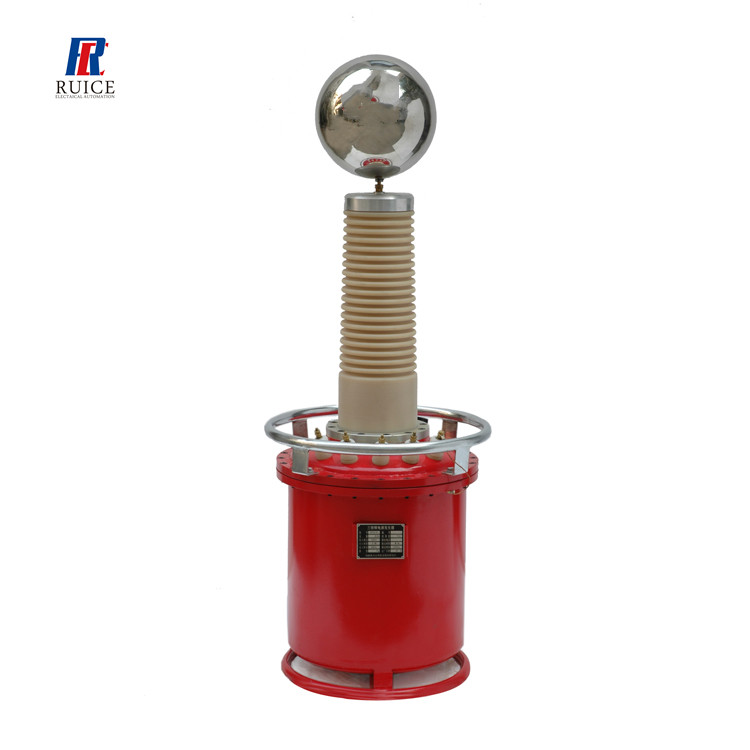

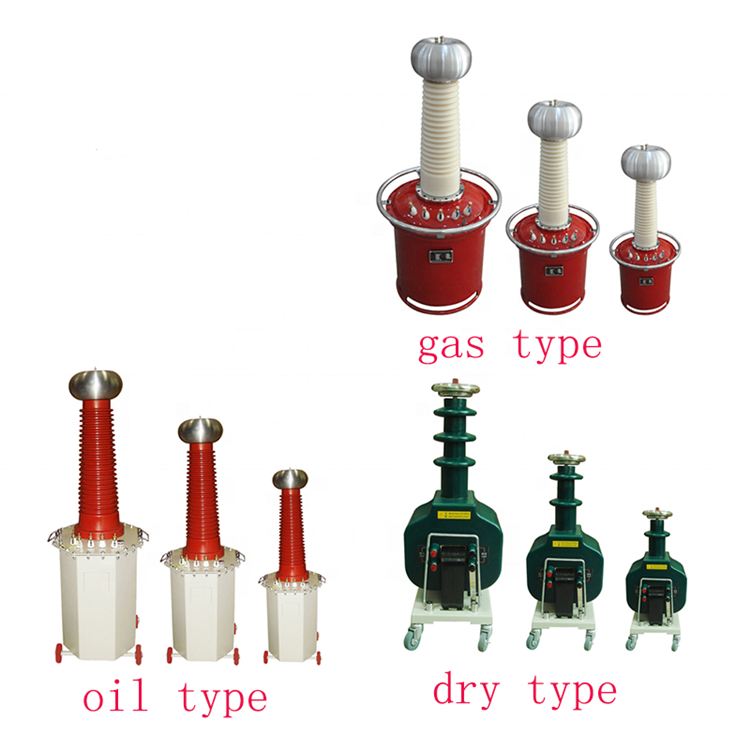

No. | Oil Immersed | Dry | Inflatable | Console | Control Box | |
1 | RCJ-1.5KVA/50KV | RCJ-10KVA/120KV | RCG-1.5KVA/50KV | RCQ-5KVA/50KV | RCTC-10 | RCXC-3 |
2 | RCJ-3KVA/50KV | RCJ-10KVA/150KV | RCG-3KVA/50KV | RCQ-10KVA/50KV | RCTC-10 Auto | RCXC-5 |
3 | RCJ-5KVA/50KV | RCJ-15KVA/150KV | RCG-5KVA/50KV | RCQ-15KVA/50KV | RCTC-15 | RCXC-6 |
4 | RCJ-6KVA/50KV | RCJ-20KVA/150KV | RCG-10KVA/50KV | RCQ-20KVA/50KV | RCTC-15 Auto | RCXC-10 |
5 | RCJ-10KVA/50KV | RCJ-30KVA/150KV | RCG-15KVA/50KV | RCQ-30KVA/50KV | RCTC-20 | -- |
6 | RCJ-15KVA/50KV | RCJ-50KVA/150KV | RCG-20KVA/50KV | RCQ-50KVA/50KV | RCTC-20 Auto | -- |
7 | RCJ-20KVA/50KV | RCJ-100KVA/150KV | RCG-25KVA/50KV | RCQ-5KVA/100KV | RCTC-30 | -- |
8 | RCJ-30KVA/50KV | RCJ-150KVA/150KV | RCG-30KVA/50KV | RCQ(c)-5KVA/100KV | RCTC-30 Auto | -- |
9 | RCJ-50KVA/50KV | RCJ-200KVA/150KV | RCG-5KVA/100KV | RCQ-10KVA/100KV | RCTC-50 | -- |
10 | RCJ-100KVA/50KV | RCJ-30KVA/200KV | RCG-10KVA/100KV | RCQ-15KVA/100KV | RCTC-50 Auto | -- |
11 | RCJ-3KVA/100KV | RCJ-50KVA/200KV | RCG-15KVA/100KV | RCQ-20KVA/100KV | RCTC-100 Induction | -- |
12 | RCJ-5KVA/100KV | RCJ-100KVA/200KV | RCG-20KVA/100KV | RCQ-30KVA/100KV | RCTC-100Column | -- |
13 | RCJ-6KVA/100KV | RCJ-150KVA/200KV | RCG-25KVA/100KV | RCQ-50KVA/100KV | RCTC-150 Induction | -- |
14 | RCJ-10KVA/100KV | RCJ-200KVA/200KV | RCG-30KVA/100KV | RCQ-10KVA/150KV | RCTC-150Column | -- |
15 | RCJ-15KVA/100KV | RCJ-50KVA/250KV | RCG-15KVA/120KV | RCQ-20KVA/150KV | RCTC-200 Induction | -- |
16 | RCJ-20KVA/100KV | RCJ-100KVA/250KV | RCG-20KVA/120KV | RCQ(C)-20KVA/160KV | -- | -- |
17 | RCJ-30KVA/100KV | RCJ-150KVA/250KV | RCG-25KVA/120KV | RCQ-30KVA/150KV | -- | -- |
18 | RCJ-50KVA/100KV | RCJ-200KVA/250KV | -- | RCQ-50KVA/150KV | -- | -- |
19 | RCJ-100KVA/100KV | RCJ-200KVA/300KV | -- | -- | -- | -- |
20 | RCJ-150KVA/100KV | RCJ-300KVA/400KV | -- | -- | -- | -- |
