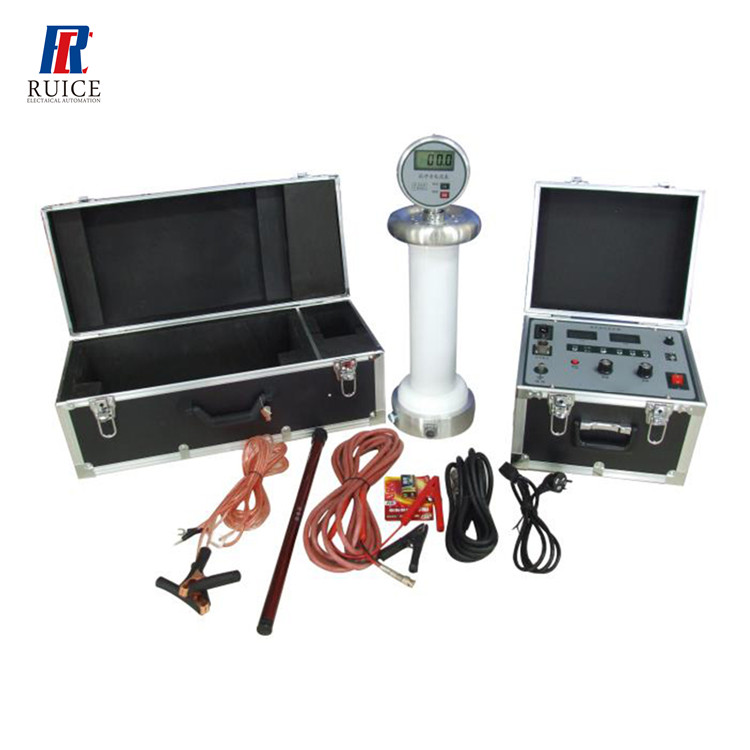

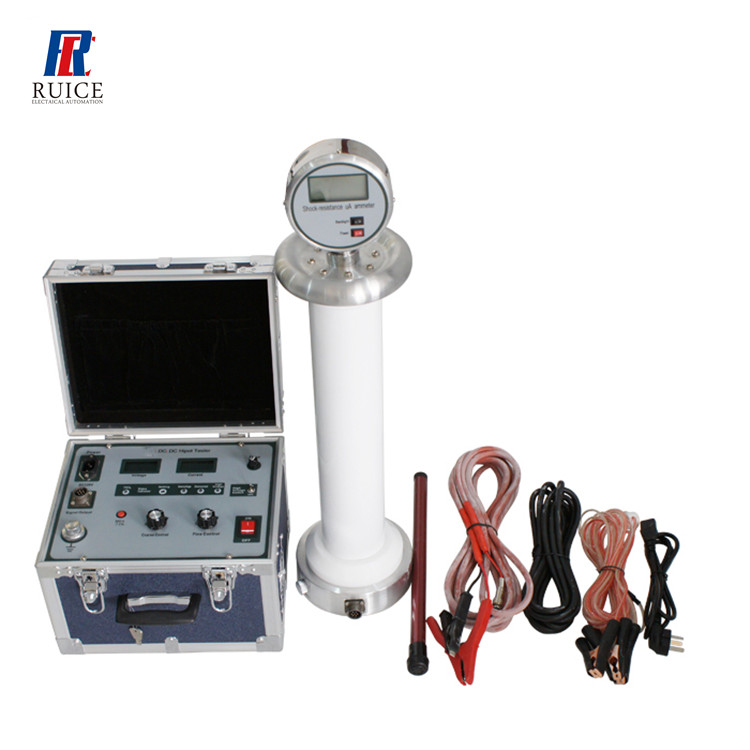

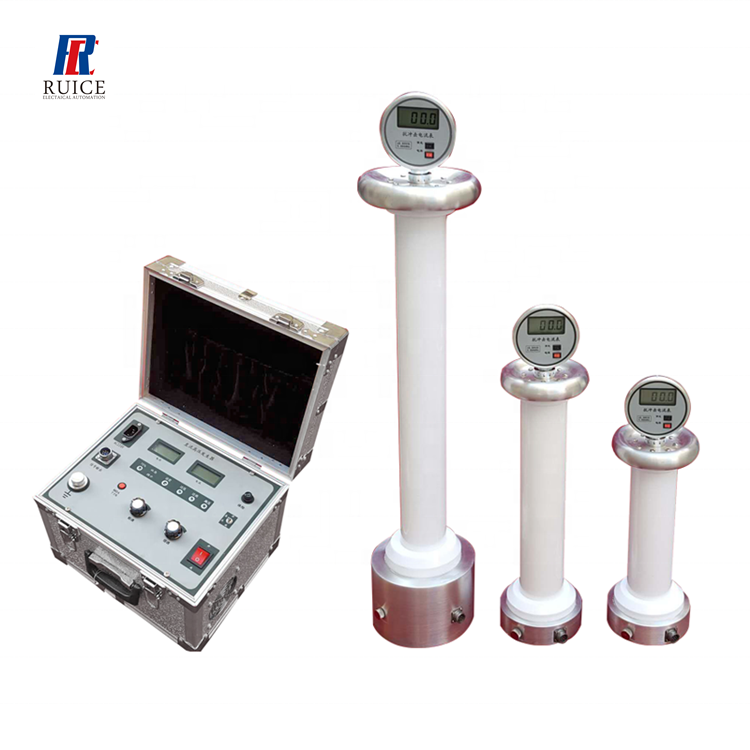

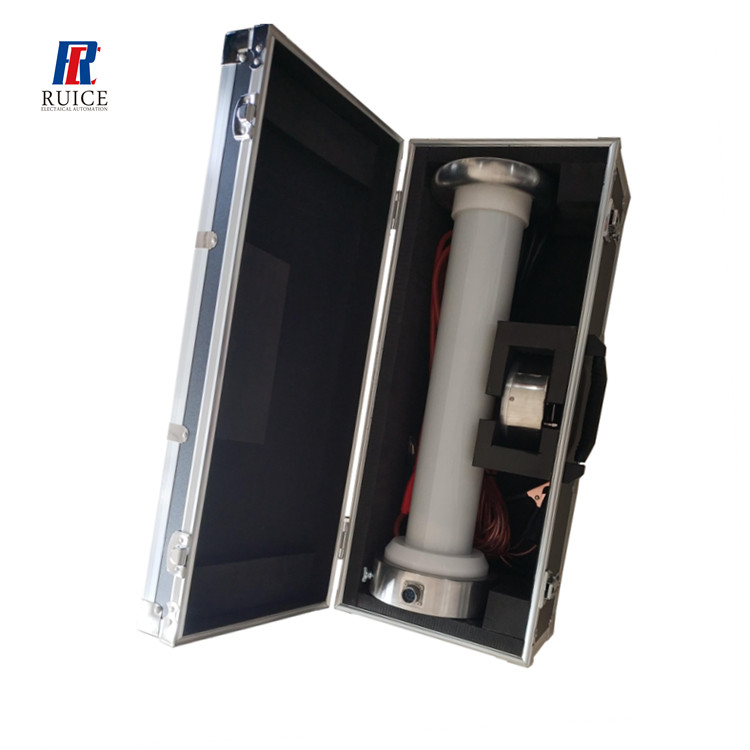

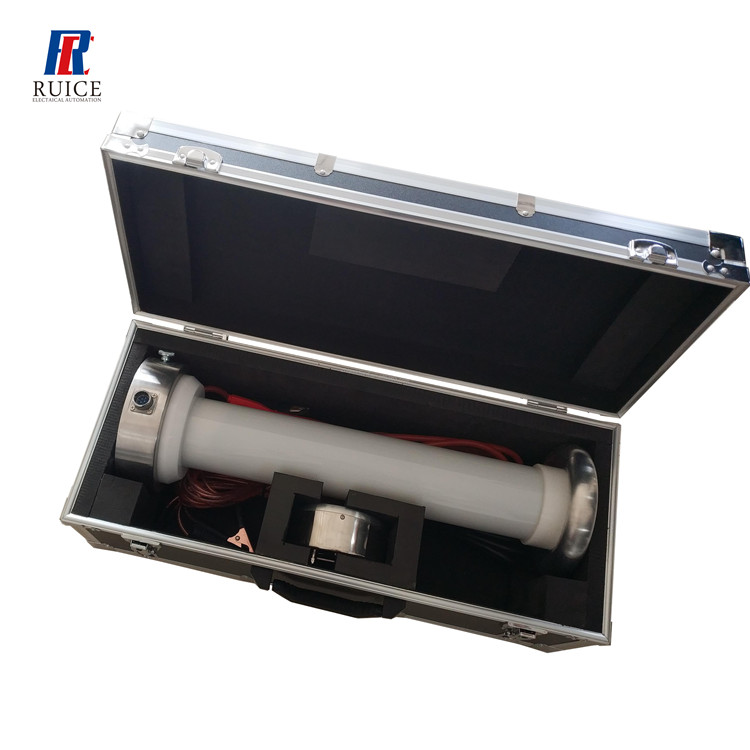

Electric 300kv 5ma DC High Voltage Generator DC Hipot Tester Direct Current Hipot Test Device
RuiceElectric 300kv 5ma DC High Voltage Generator DC Hipot Tester Direct CurrentHipot Test Device
Product Description

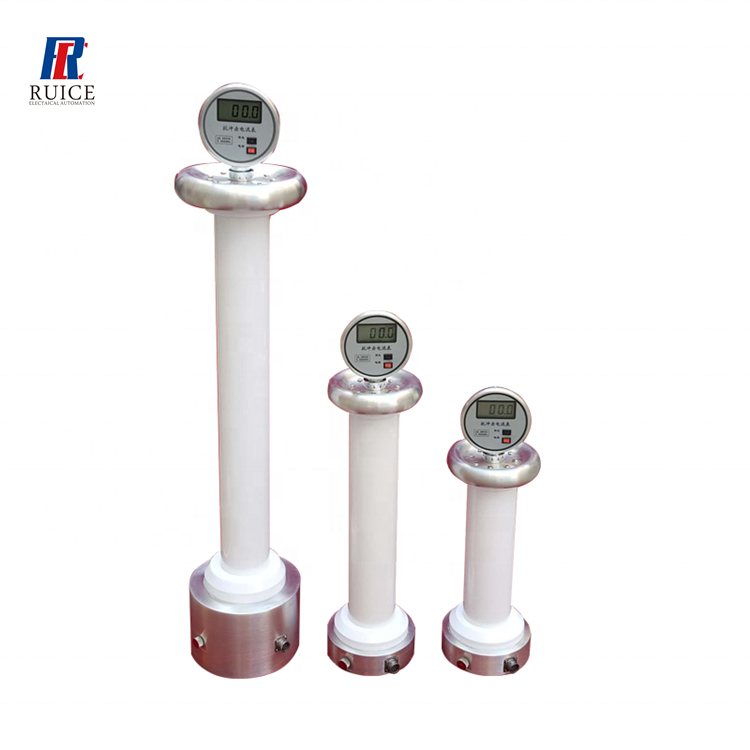

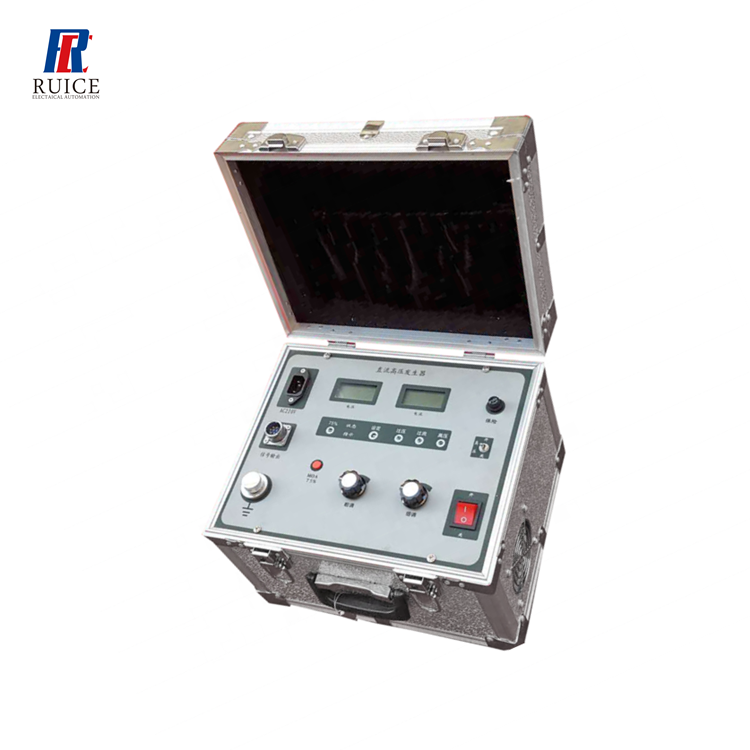

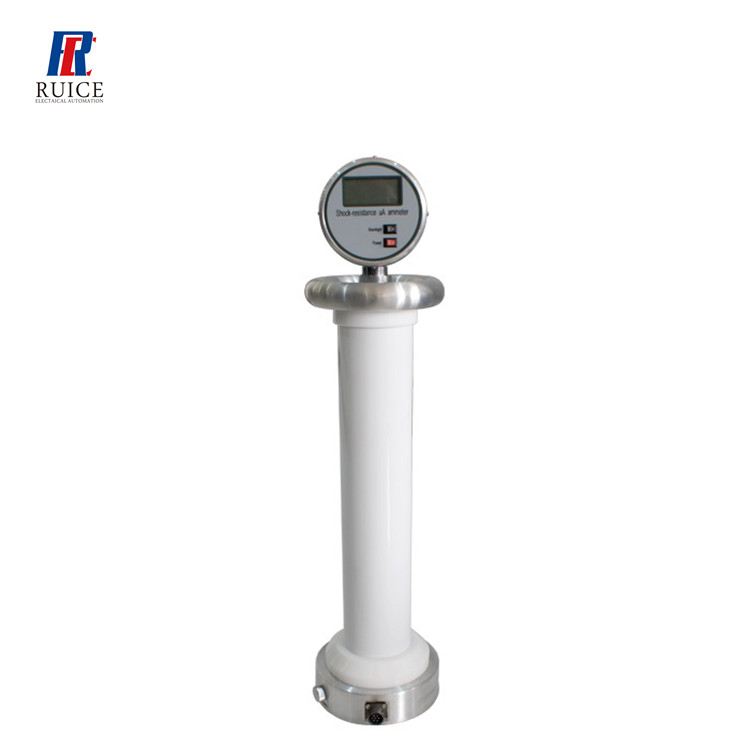

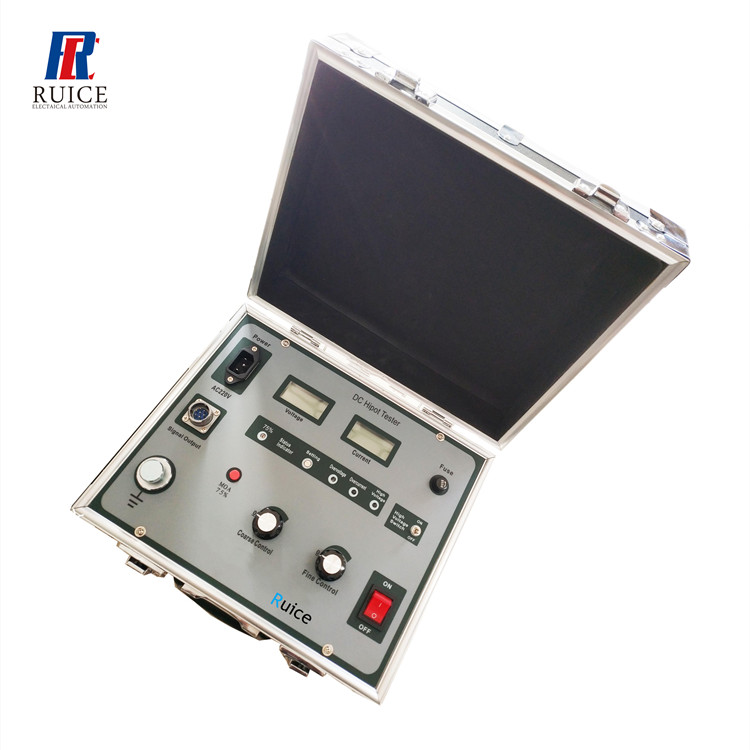

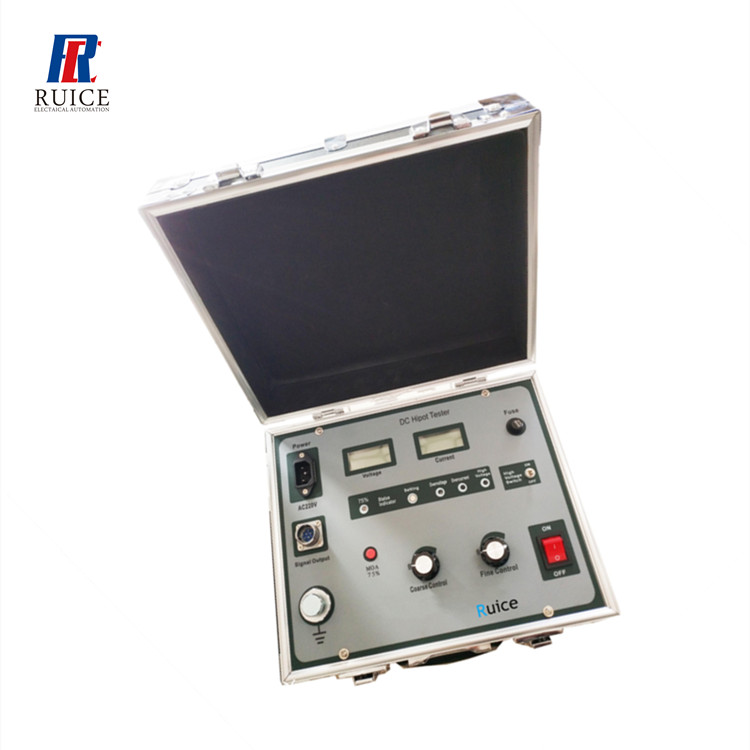

Voltage (KV)/mA | Control Box | High-Voltage Unit | |||||
Rated Voltage | Size (mm) | Weight kg | Size (mm) | Weight kg | |||
60/2-5 | 60KV | 310 * 250 * 230 | 5kg | 470 * 260 * 220 | 6kg | ||
80/2-5 | 80KV | 310 * 250 * 230 | 6kg | 490*260*220 | 8kg | ||
100/2-5 | 100KV | 310 * 250 * 230 | 6kg | 550*260*220 | 8kg | ||
120/2-5 | 120KV | 310 * 250 * 230 | 7kg | 600 * 260 * 220 | 10kg | ||
200/2-5 | 200KV | 310 * 250 * 230 | 8kg | 1000 * 280 * 270 | 20kg | ||
300/2-5 | 300KV | 310 * 250 * 230 | 9kg | 1300 * 280 * 270 | 22kg | ||
output polarity | Negative polarity, no-voltage start, linear continuous adjustment | ||||||
working power supply | 50HZ AC220V±10% | ||||||
voltage error | 0.5%±2,minimum solution 0.1KV | ||||||
current error | 0.5%±2,minimum solution 0.1µA | ||||||
ripple factor | better than 0.5% | ||||||
voltage stability | Random flunctuation , grid change is 10% , the flunctuation <=0.5% | ||||||
working manner | Interval working, less than 30 minutes under rated load | ||||||
working condition | Temperature: 0-40℃, humidity: less than 90% | ||||||
storage condition | Temperature: -10℃~40℃, humidity: less than 90% | ||||||
altitude | Lower than 3000 m | ||||||
