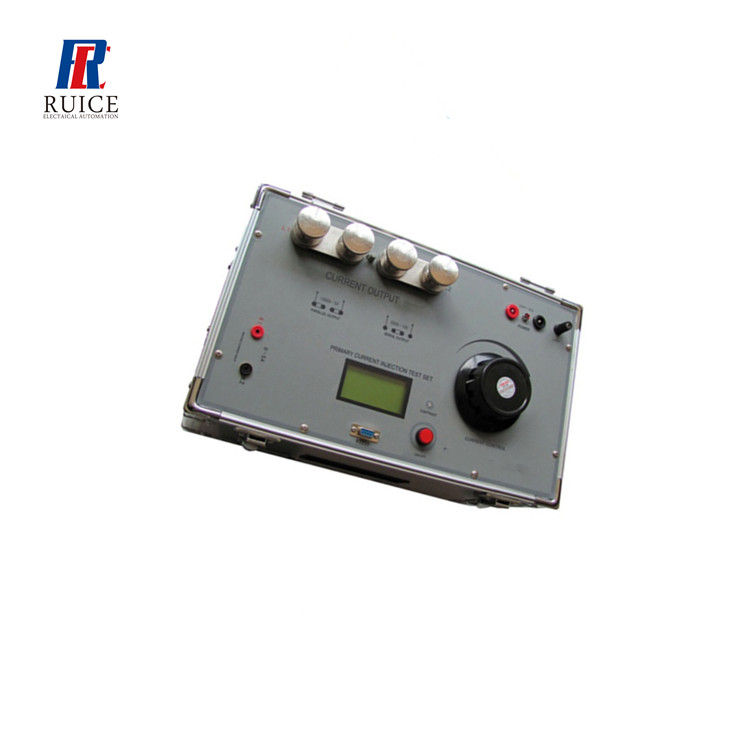

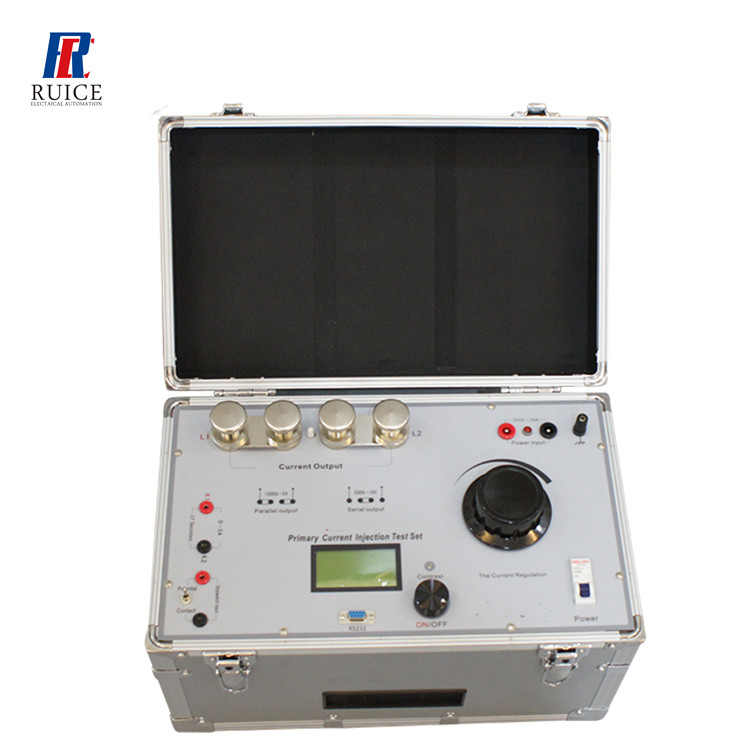

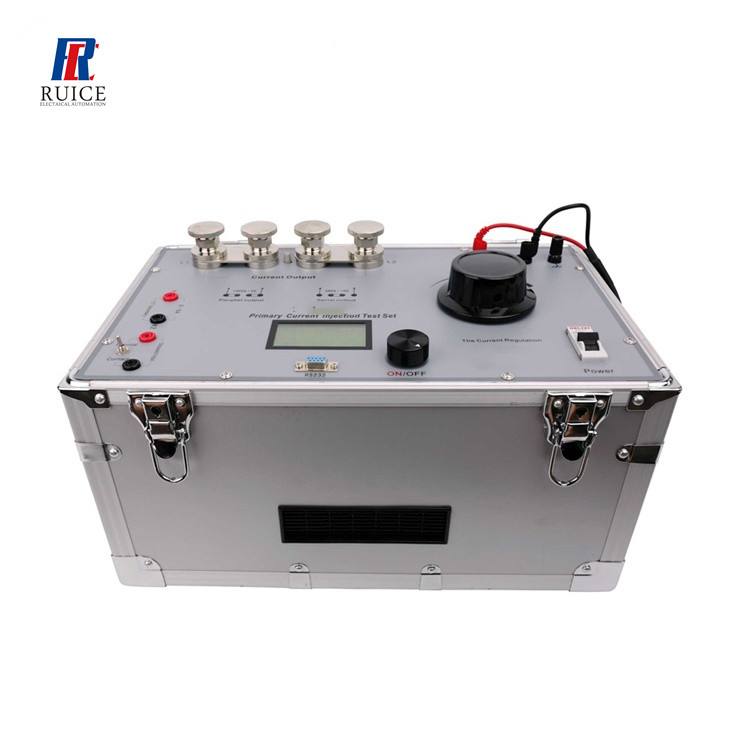

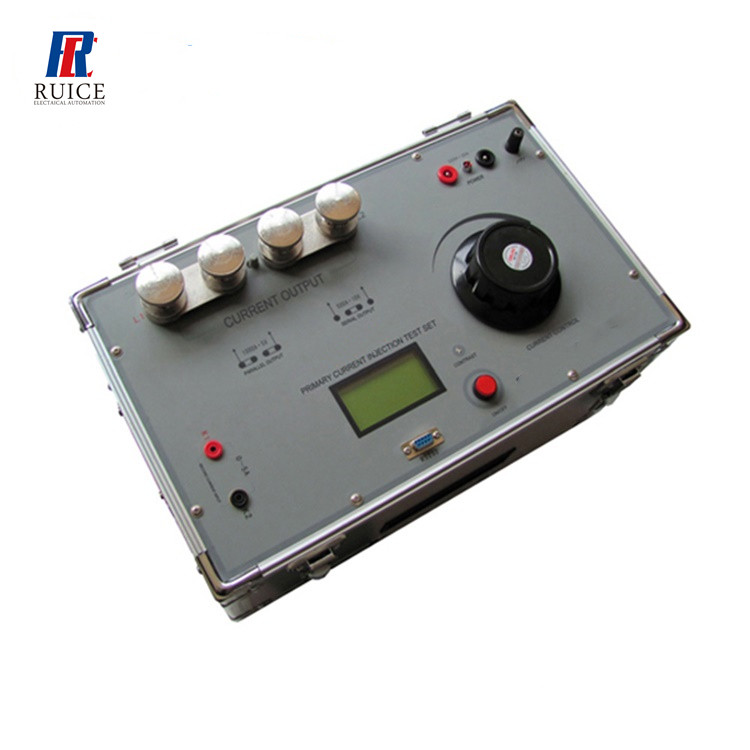

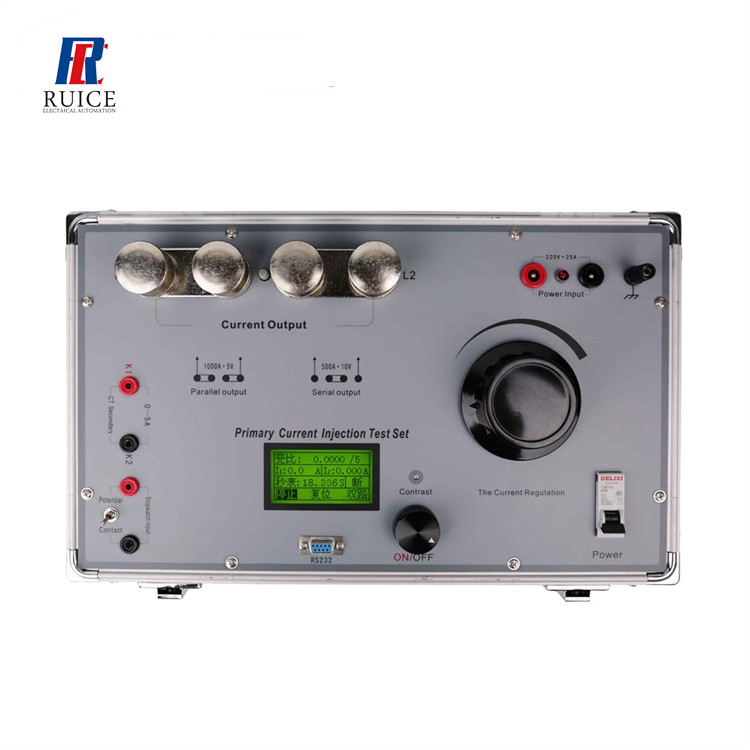

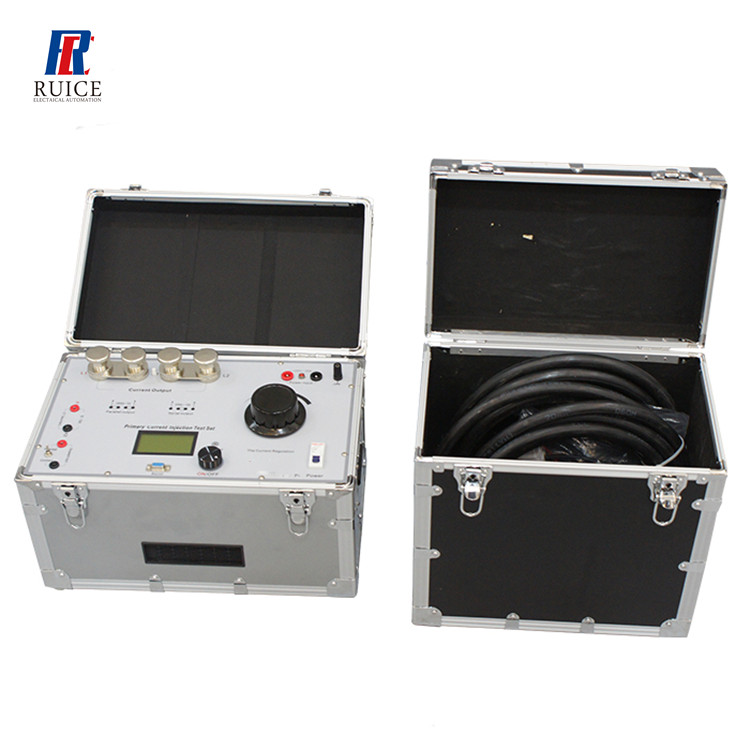

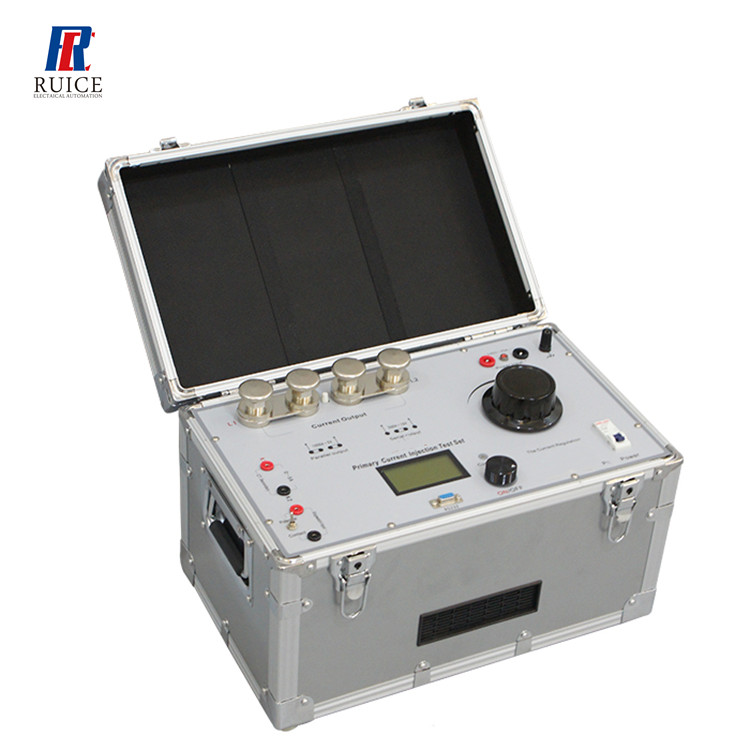

primary current injection test set adopts ARM Chip to control its output process andlarge
capacity of toroidal transformers. It is equipped with LCD display andcurrent meter; it can show
primary current value, second current value, turnratio and the action time. Packing is used as aluminum
alloy body with PCpanel. RCSL-109 is mainly applied to CT turn ratio testing in the power systemand
contact resistance test which need large current.
1.Power Supply: AC: 220V± 10%· 25A, 50Hz/60Hz
2. Current Output: AC: 1000A· 5V or 500A· 10V, Capacity: 5KVA
3. The current output waveform distortion: ≤ 5%
4. Display, primary current, second current and turn ratio,
Accuracy: ± 0.5%,
Primary current range: 0~1100A, Resolution: 0.1A;
Measurement second current range: 0~6A, Resolution: 0.001A
Current Duration: 1000A range: 1000A 2~3minutes,
500A 3~6minutes
500A range: 500A 2~3minutes,
5. Dual protection (overload electronic protection and software protection)
6. Working environment: Temperature -10~40, relative humidity≤ 80%
7. Volume: 430mm× 260mm× 260mm
8. Weight: 28Kg
