Insulation Test instrument
Brief introduction

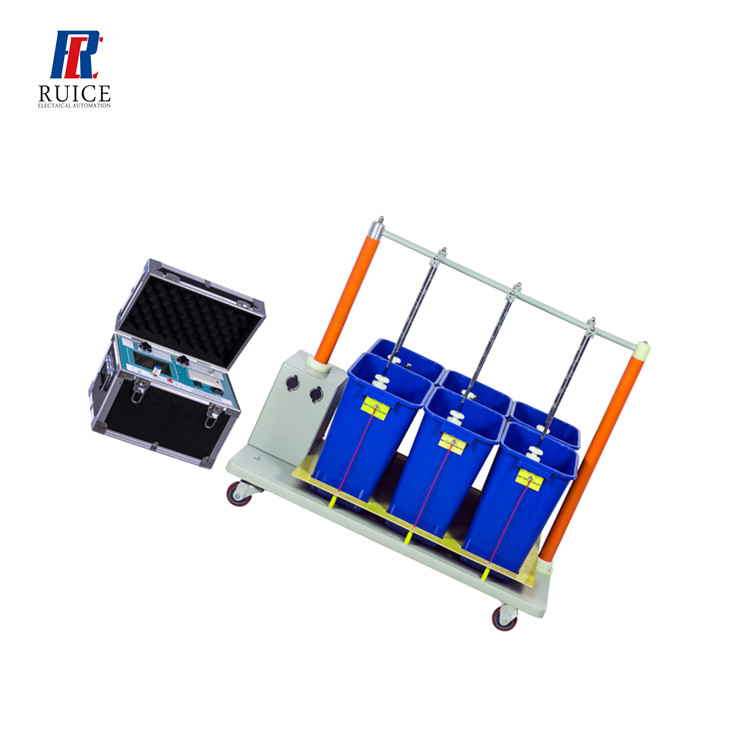

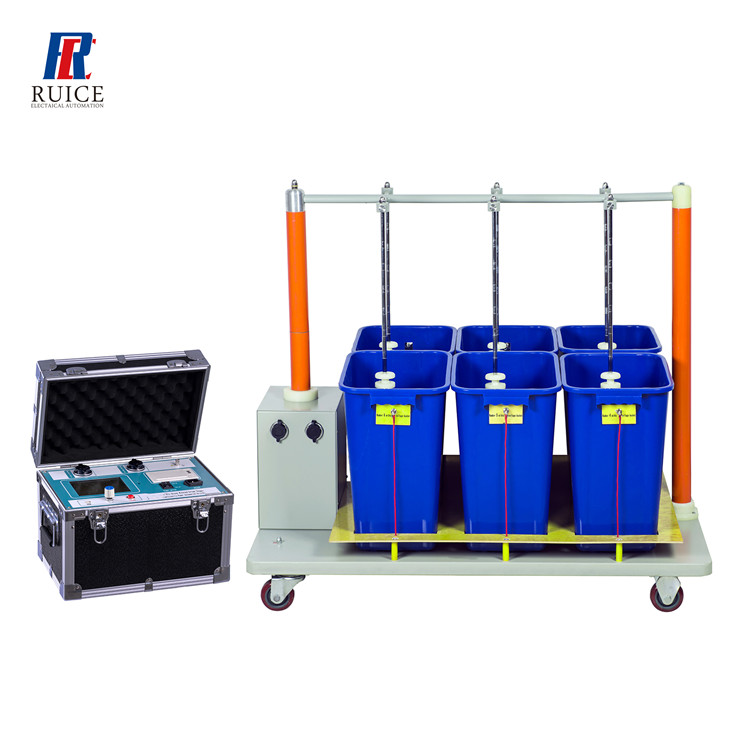

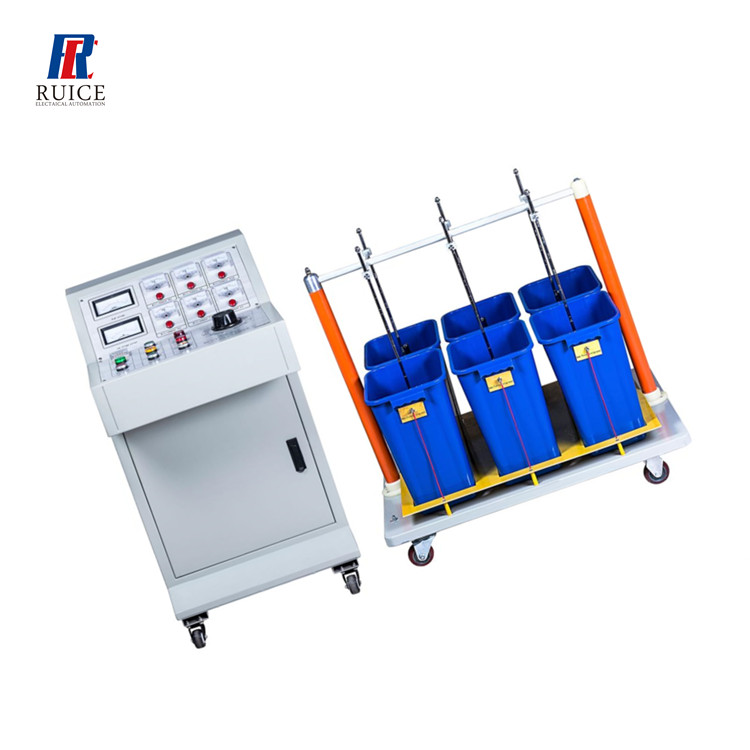

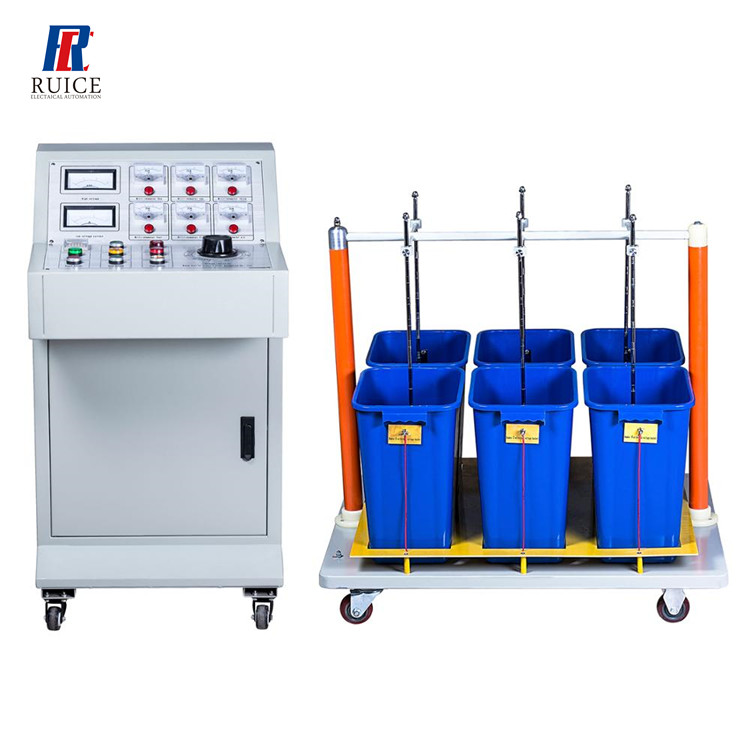

RCJX-30 Insulating Boots (Gloves) Withstand VoltageTest Equipment, on the basis of insulating boots
(gloves) test regulations andcustomers’ opinions, is designed by our company. The application of fully
automatic step-up (stepdown) to this equipment makes it automatically read outall
leakage currents of tested objects, automatically complete the entireprocess and automatically print test
data, which not only simplify testing procedures and increase test speed, but also effectively improve the past irregulartest method.
It can reliablyidentify leakage currents of insulating boots(gloves), power frequency withstand voltage and
other parameters. Moreover, itensure the safety of operators, it is the ideal insulating boots (gloves)special equipment. Its main features is that: simultaneously test three pairsof insulating boots (gloves); read out
leakage currents of each boot (glove);accurately determine unqualified insulating boots (gloves); having
casters atthe bottom of structure make it move freely.
Products features
1. Fast testspeed, improve the efficiency.
2. Voltagewithstand, HV leakage current direct reading, auto identify unqualified
measured equipment, high degree of intelligence.
3. Simultaneouslytest three pairs of insulating boots (gloves), read out leakage currents
ofeach boot (glove), accurately determine unqualified insulating boots (gloves).

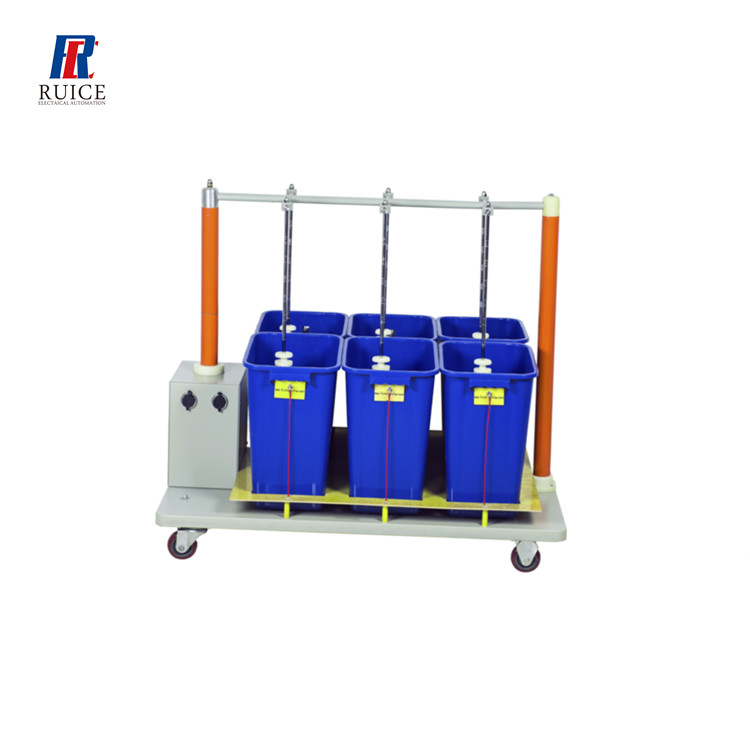

4. Havingcasters at the bottom of structure make it move freely.
Product parameters
Input voltage | ~220V 50Hz | |
Output voltage | 0~30kV | |
Capacity | 3kVA | |
Test quantity | 3 pairs each time | |
Measured data | Display and print tested voltage value; leakage current value; Over-current protection; over-voltage protection; custom time, voltage, and leakage current value. | |
User interface | LCD, with printer | |
Measurement accuracy | Voltage: ±2%(±3d) | Current: ±2%(±3d) |
Weight | Control cabinet: 12Kg, test bed: 60kg | |
