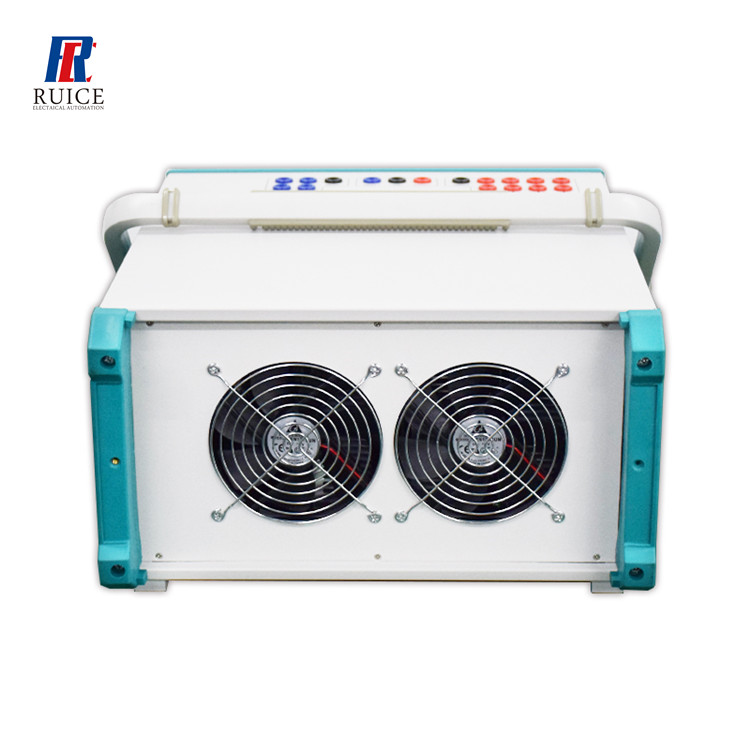

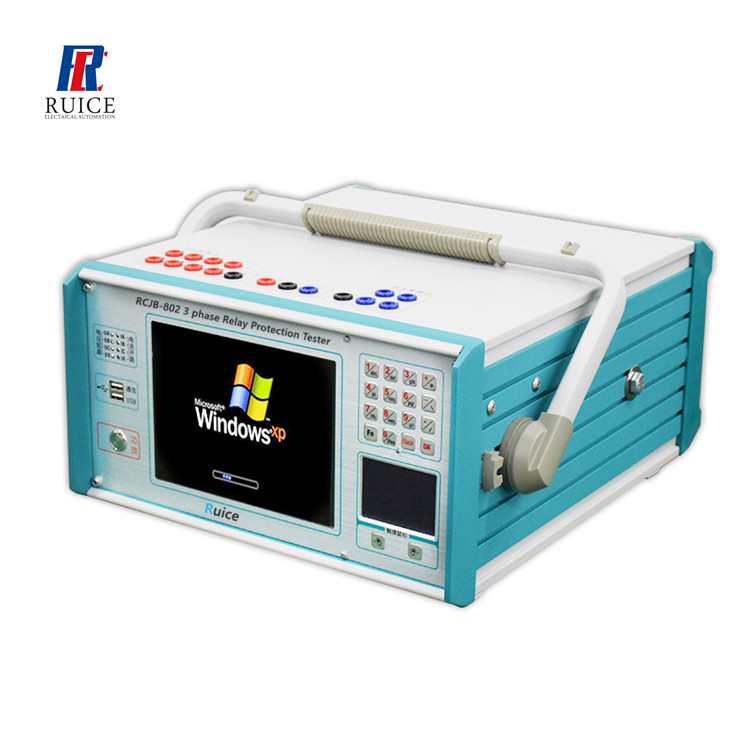

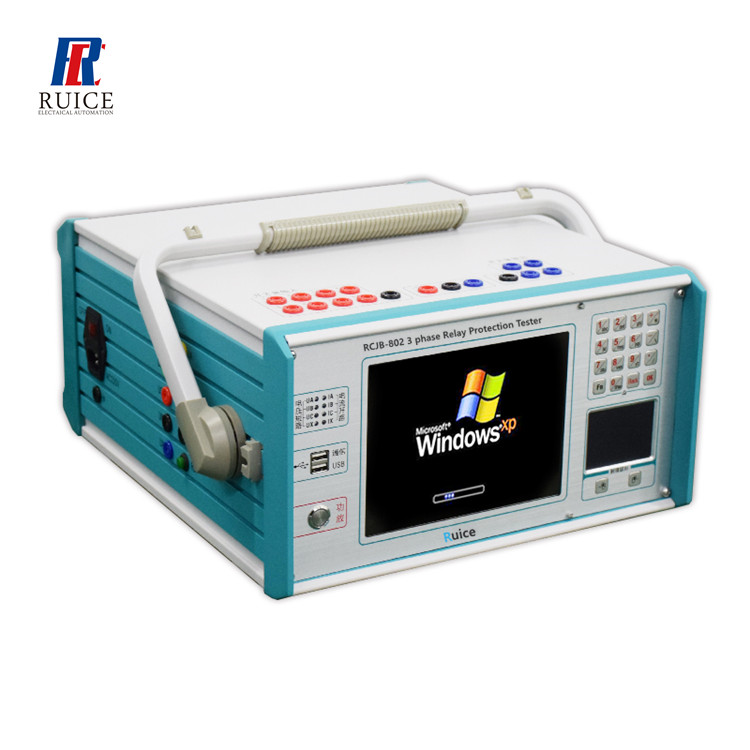

Main Features

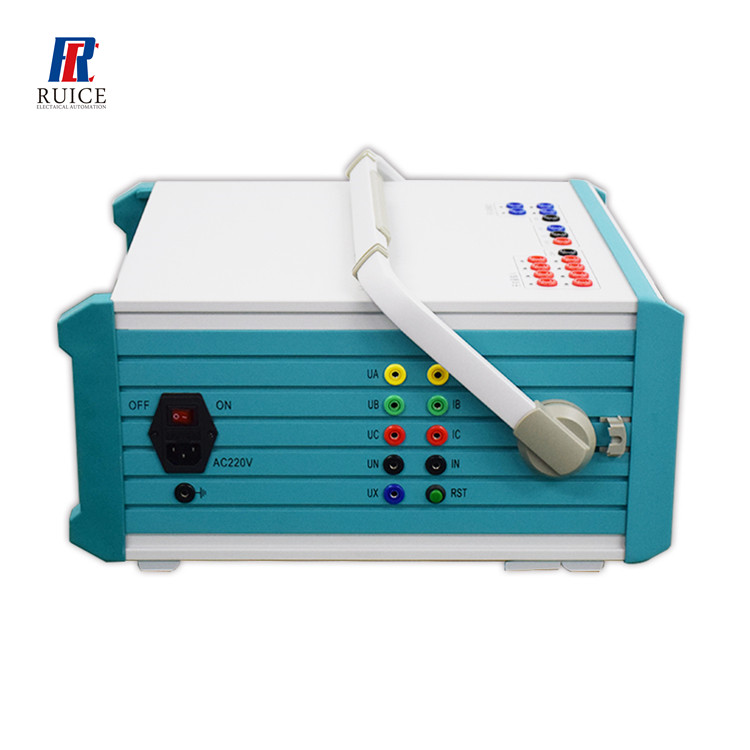

1. Meets all on-site testing requirements. This instrument has standard four-phase voltage and three-phase current output, capable of testing various traditional relays and protection devices, as well as modern microcomputer protection devices, especially transformer differential power protection and automatic transfer switch devices, making testing more convenient and efficient.
2. All technical specifications fully meet the standards of DL/T624-1997 "Technical Conditions for Microcomputer-Based Relay Protection Testing Devices" issued by the Ministry of Electric Power.

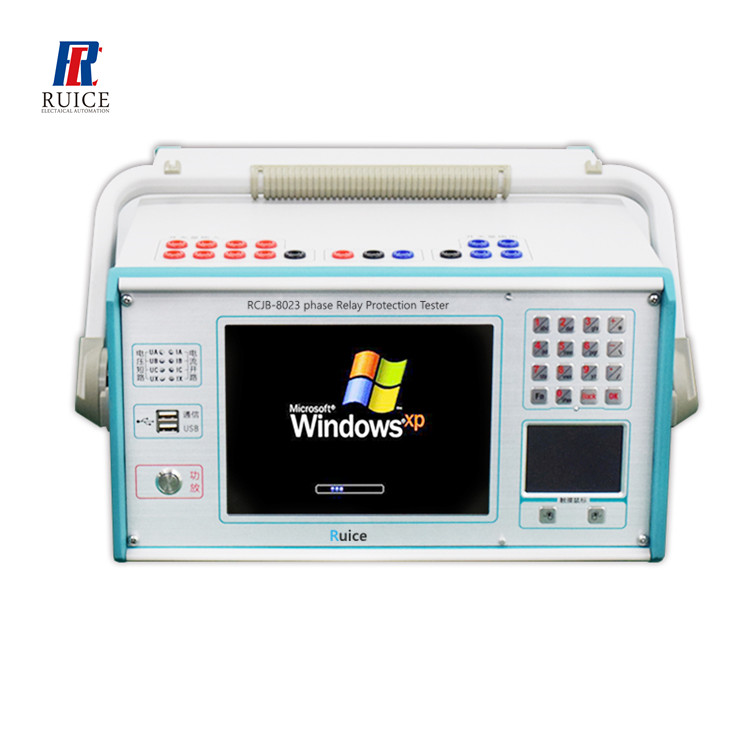

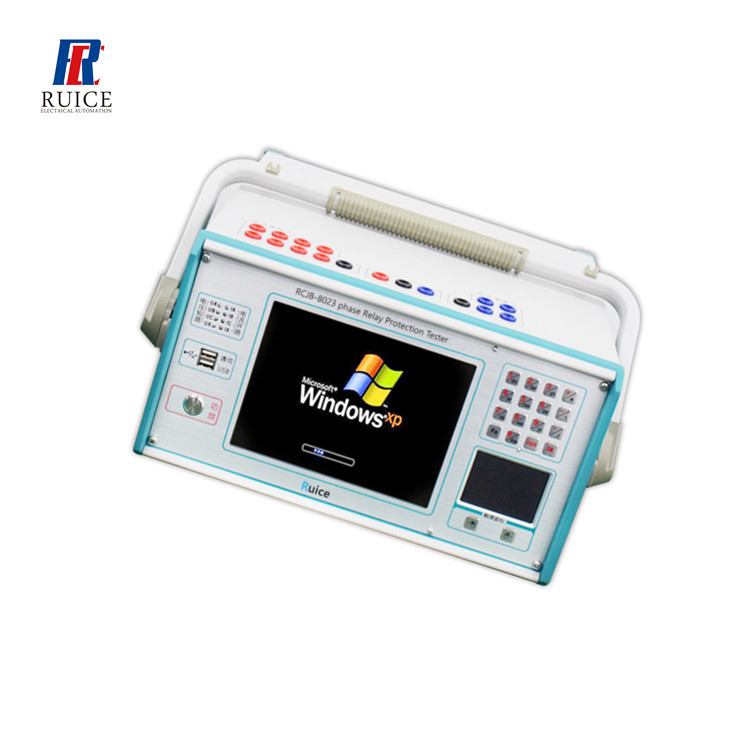

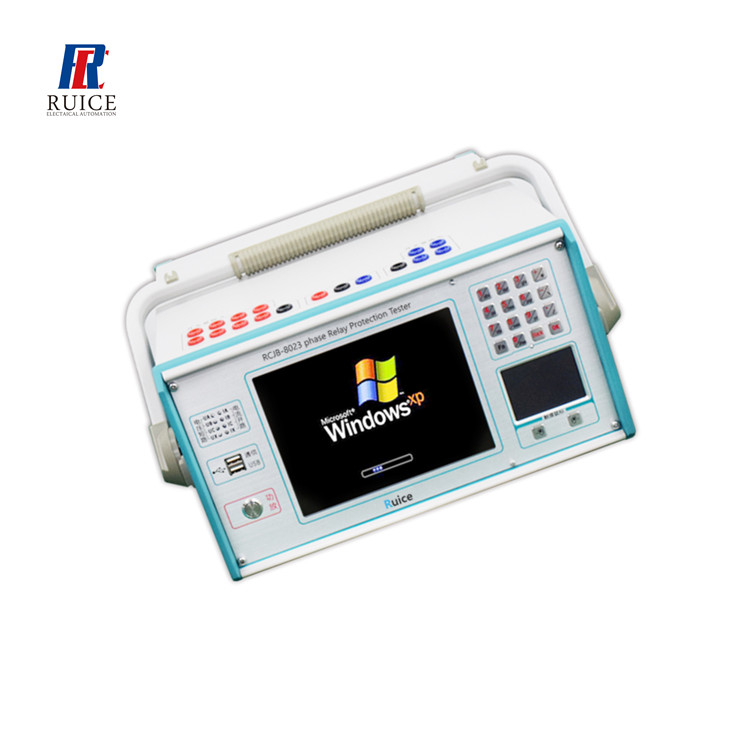

3. Classic Windows XP operating interface, user-friendly and easy to operate; high-performance embedded industrial control computer and 8.4-inch TFT true-color display with a resolution of 800×600 provide rich and intuitive information, including the current operating status of the equipment and various help information.
4. The built-in Windows XP system has a recovery function to prevent system crashes caused by improper shutdown or misoperation.
5. Equipped with an ultra-thin industrial keyboard and optical mouse, allowing various operations to be performed via keyboard or mouse just like operating a regular PC.
6. The main control board adopts a DSP+FPGA structure with 16-bit DAC output, generating a high-density sine wave of 2000 points per cycle for the fundamental frequency, significantly improving waveform quality and enhancing the accuracy of the tester.
7. The power amplifier uses a high-fidelity linear amplifier, ensuring both accuracy under low current and stability under high current.
8. It communicates directly with a PC via USB interface, requiring no adapter cables for ease of use.
9. It can be connected to a laptop (optional) for operation. The laptop and industrial control computer use the same software, eliminating the need for relearning the operating methods.
10. It features GPS synchronization testing functionality. The device can have a built-in GPS synchronization card (optional) connected to a PC via RS232 port, enabling remote synchronous testing between two testers.
11. It is equipped with an independent dedicated DC auxiliary voltage source output, with output voltages of 110V (1A) and 220V (0.6A). This provides power to relays or protection devices requiring DC operating power.
12. It has a software self-calibration function, which avoids the need to open the chassis and adjust the potentiometer to calibrate the accuracy, thus greatly improving the stability of the accuracy.
Section 2 Technical Parameters
1. AC Current Source (3*40A)
Single-phase current output (RMS): 0-40A per phase, accuracy: 0.2% ±5mA
Three-phase parallel output (RMS): 0-120A/three-phase parallel output with the same phase
Period current allowable operating value (RMS): 10A
Maximum output power per phase: 400VA
Maximum output power of three-phase parallel current: 1000VA
Maximum allowable operating time of three-phase parallel current: 10s
Frequency range: 0-1000Hz, accuracy: 0.01Hz
Harmonic order: 2-20th
Phase: 0-360°, accuracy: 0.1°
2. DC Current Source
DC current output: 0-±10A/phase, accuracy: 0.2% ±5mA
3. AC Voltage Source
Single-phase voltage output (RMS): 0-125V/phase, accuracy: 0.2% ±5mV
Line voltage output (RMS): 0-250V
Phase voltage/line voltage output power: 75VA/100VA
Frequency range: 0-1000Hz, accuracy: 0.001Hz
Harmonic order: 2-20th
Phase: 0-360°, accuracy: 0.1°
4. DC Voltage Source
Single-phase voltage output amplitude: 0-±150V, accuracy: 0.2% ±5mV
Line voltage output amplitude: 0-±300V
Phase voltage/line voltage output power: 90VA/180VA
5. Digital Input Terminals
8 pairs of digital input terminals
Dry contact 1--20mA, 24V Internal active output
Voltage reversal Passive contact: Low impedance short-circuit signal
Active contact: 0-250V DC
4 pairs of digital output terminals, dry contact, breaking capacity: 110V/2A, 220V/1A
Time range: 1ms--9999s, measurement accuracy: 1ms
Desktop unit size and weight Dimensions: 410 x 190 x 420mm³, approx. 18Kg
Power supply: AC220V±10%, 50Hz, 10A
