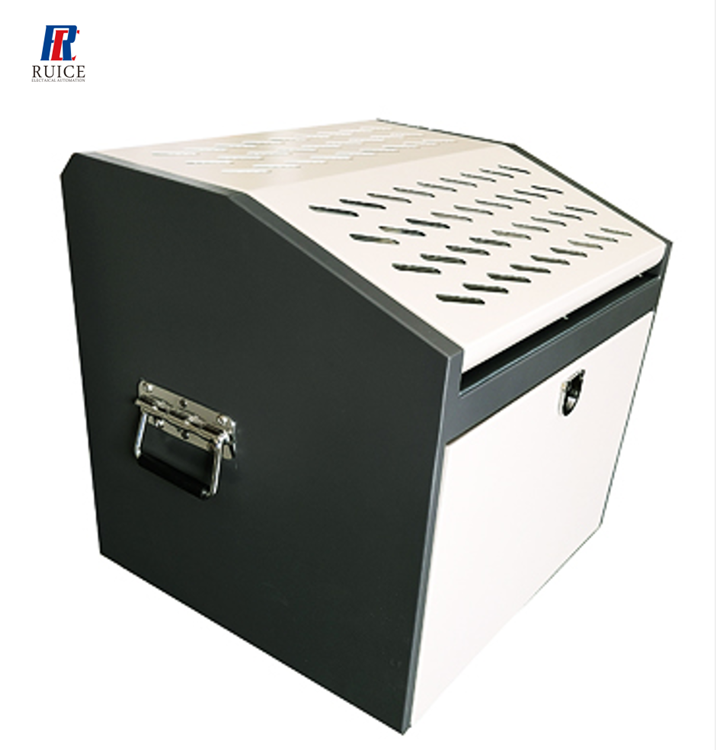

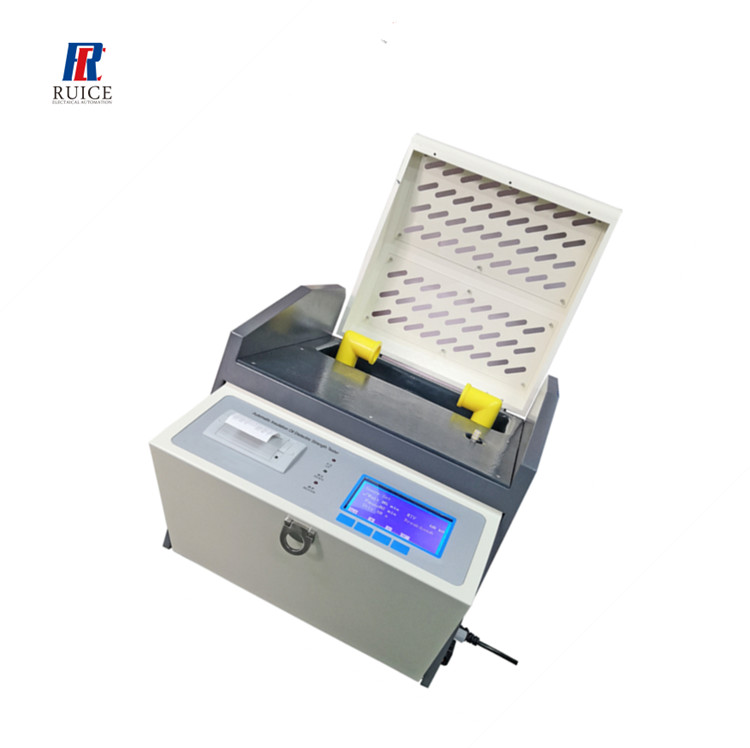

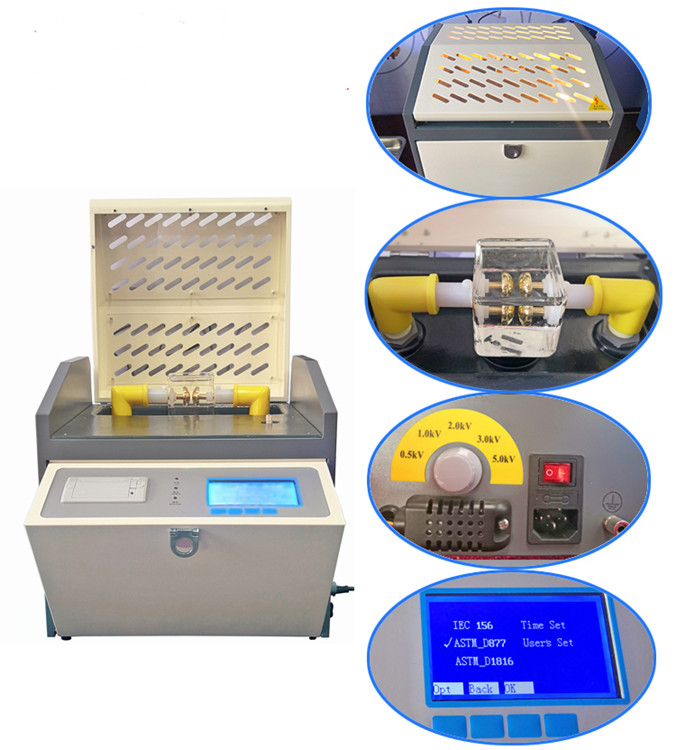

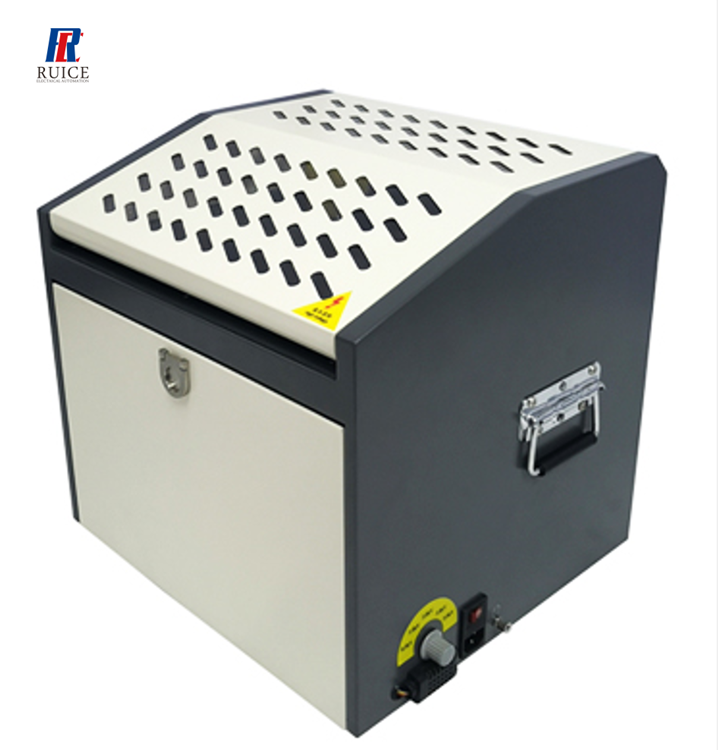

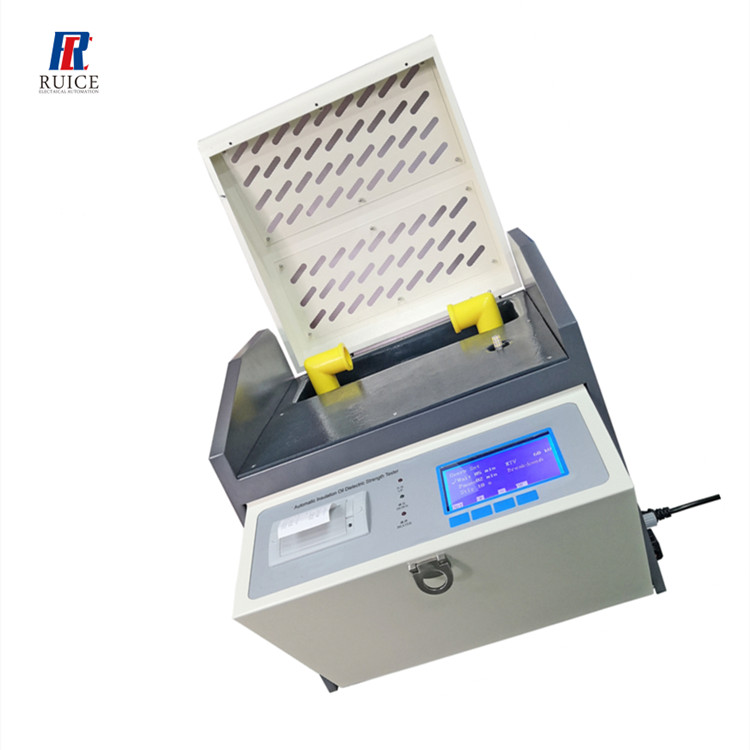

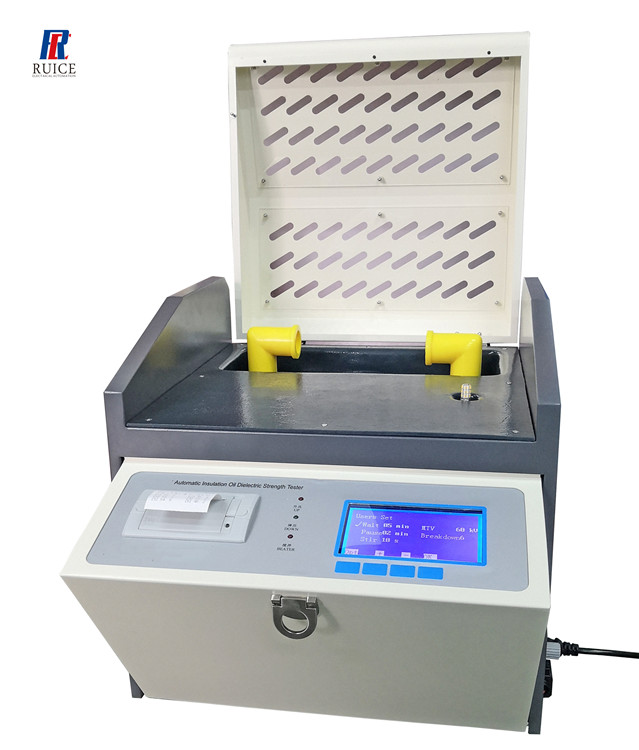

60KV/80KV/ 100KV Fully Automatic transformer oil dielectric strength BDV tester
Product Description
Insulation Transformer Oil Dielectric Strength TesterPerformance:
Insulating oil dielectric strength tester is also known as oil
breakdownvoltage tester or oil BDV tester.
Break down voltage is measured by observing at what voltage,sparking string
between two electrode immersed in the oil, separated byspecific gap. low value
of BDV indicates presence of moisture content andconducting substances in the oil.

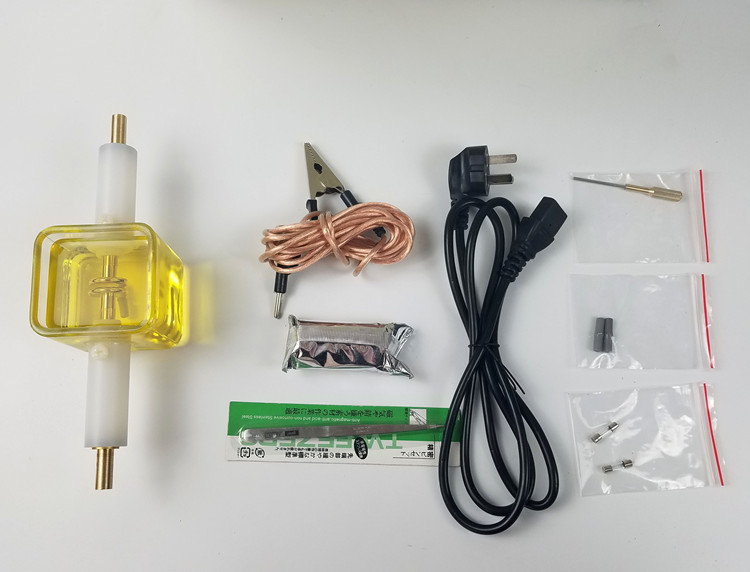

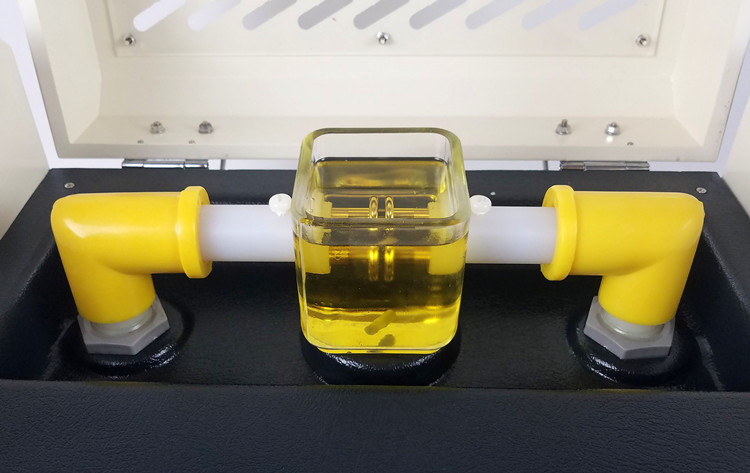

In this kit, oil is kept in a pot in which one pair of electrodesare
fixed with a gap of 2.5 mm (in some kit it 4mm) between them.
1.withstand voltage test in the range of 0 ~ 80KV.
2.Large-screen LCD.
3.Simple operation
4.Store 100 experimental results, and display the currentenvironmenttemperature
and humidity.
5.The whole process easy to control.
6.With overvoltage, overcurrent, limiting protection, in order to ensurethe
safety of operators.
7.With a temperature measurement display function and system clockdisplay.
8.Standard RS232 interface.
InsulationTransformer Oil Dielectric Strength Tester Parameter:
Output Voltage | 0~80KV (100KV need special design) |
Voltage Distortion Rate | <3% |
Voltage Raising Speed | 0.5~5 KV/S (adjustable) |
Standing Time | 15min(adjustable) |
Boosting Interval | 5 min(adjustable) |
Boosting Frequency | 1~6 time(s) |
Booster Capacity | 1.5KVA |
Measuring Accuracy | ±3% |
Supply Voltage | AC100V~220V 50Hz±1 Hz |
Power | 200W |
Applicable Temperature | -0℃~45℃ |
Applicable Humidity | ≤75%RH |
Overall Dimension | 465 mm *385 mm *425mm |
