Product Description

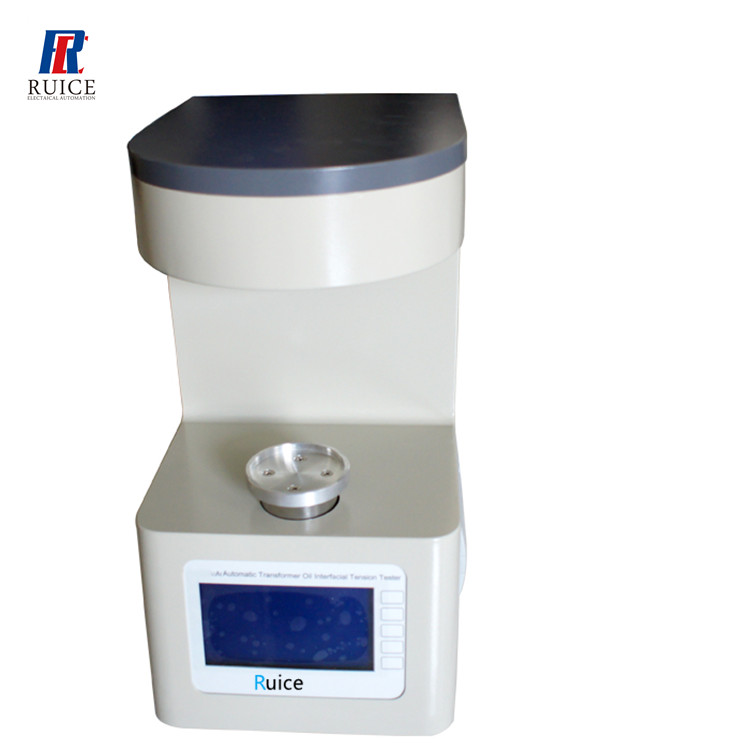

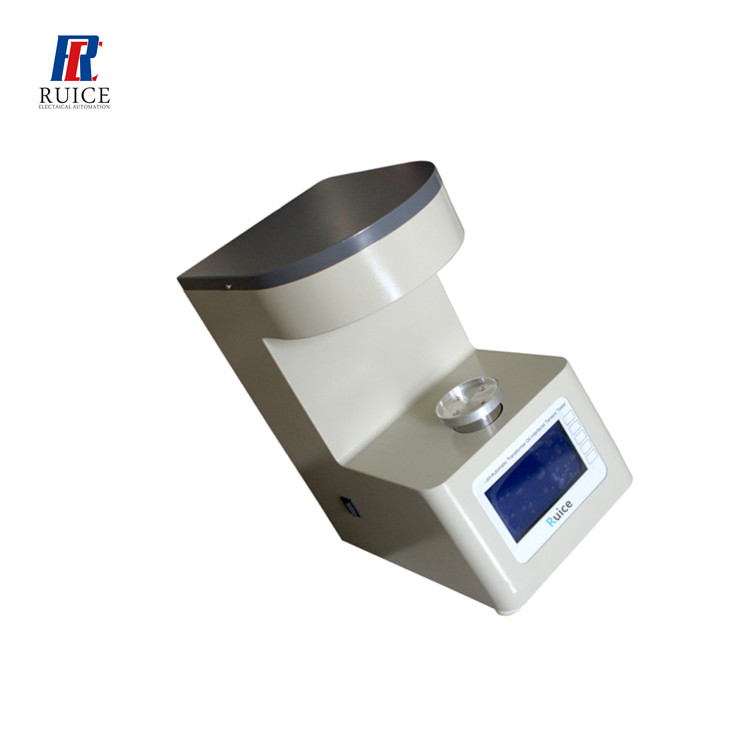

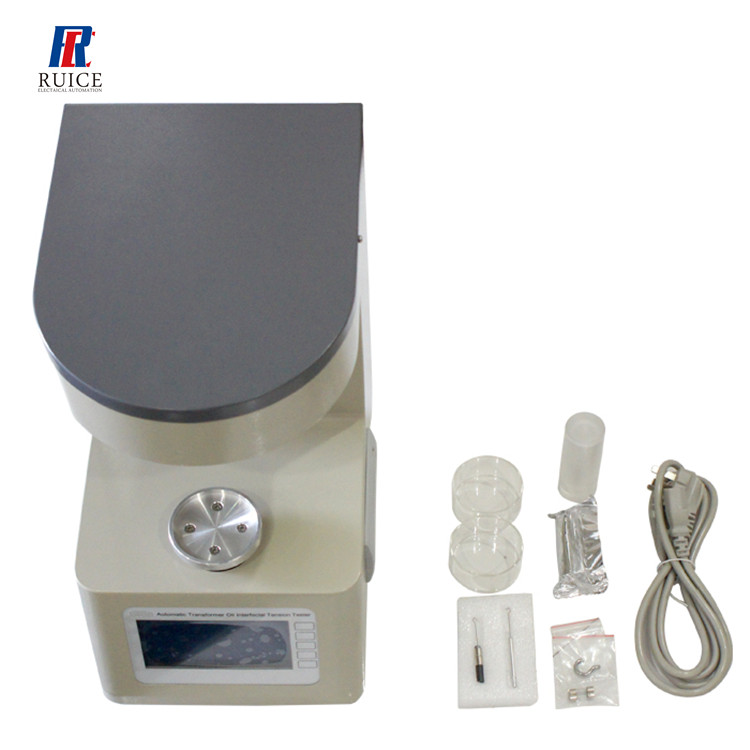

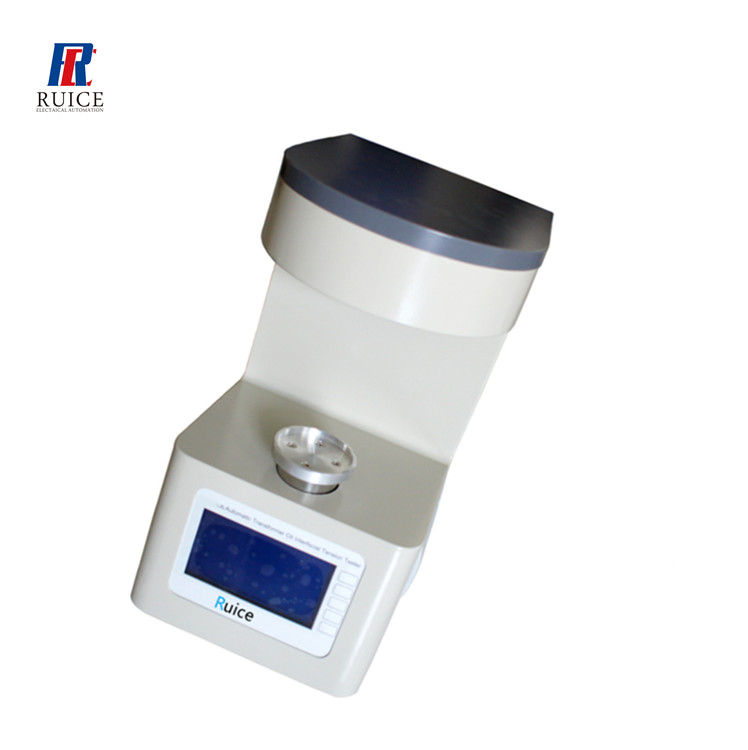

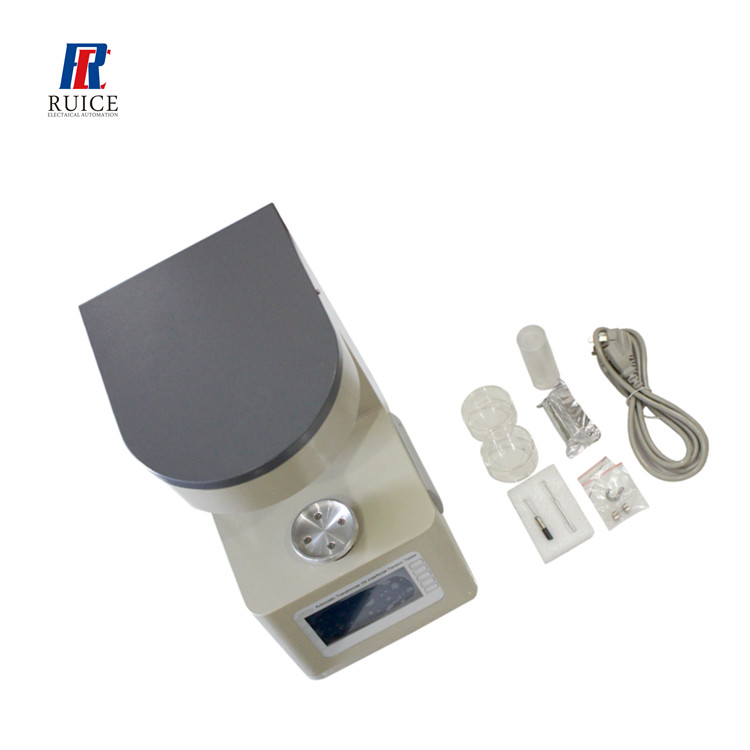

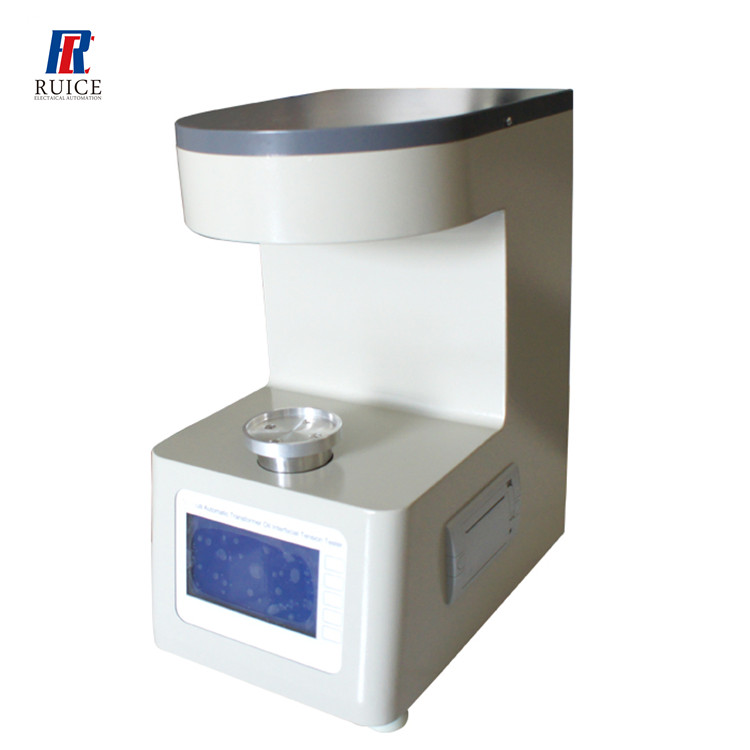

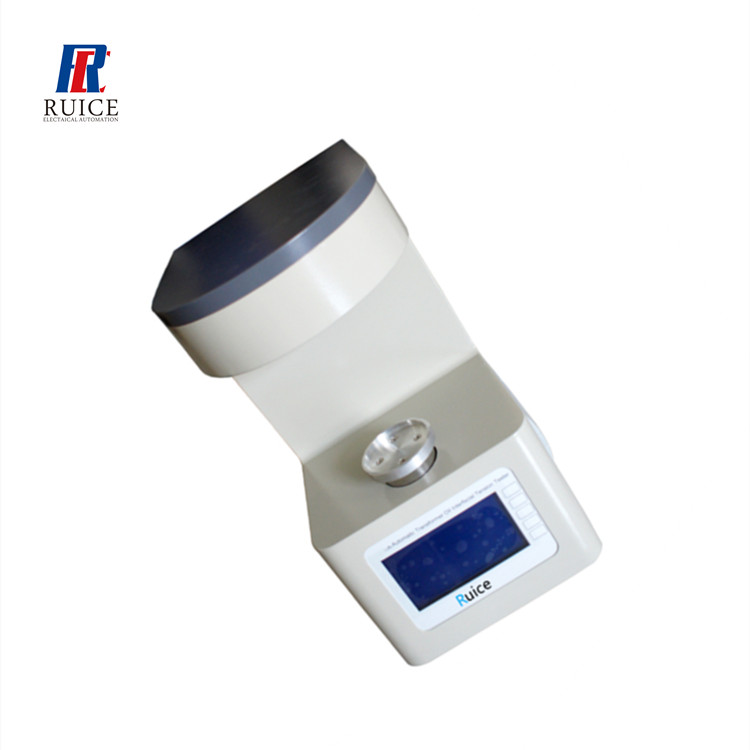

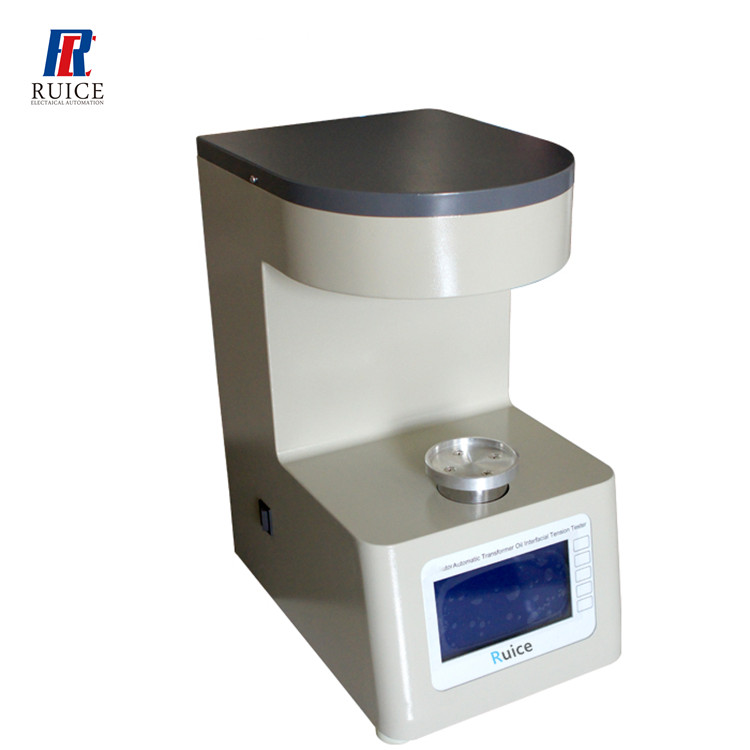

Intermolecular Forces formed liquid surface tension.Numbers of tension reflecton liquid sample's physics and chemical properties, it is one of the mostimportant index to product quality. RCZL-11 automatic tension tester apply toGB/T6541,it can test kinds of liquid surface tension and boundary surfacetesion.this method sample and accuracy,so it's used widely.
II.interfacial tensiometer Function
It used electromagnetic force -balance-type transducer, improving theaccuracy of the measurement
Demarcated one point and you can adjust the instrument, and it's veryconvenient.
The instrument can show current weight values and tesion Equivalence
The instrument can revise the test result Automatly
Used high-quality screen,the life of screen extended
The instrument can storage 255 records
The instrument has a mini- printer,you can print the test result any time.
The instrument has RS232 interface equipment,it can connect to computer,and itconvenient for data processing.
III.interfacial tensiometer Specifications
Measuring range:0-200mN/m |
Accuracy:0.1%( test result)±0.1 mN/m |
Precision: 0.1mN/m |
Sensibility: 0.1mN/m |
Mains voltage: AC220V±20% 50HZ±10% |
Maximum power dissipation:20W |
Suit ambient temperature: 10~30℃(25℃the best) |
Suit ambient humidity: ≤85% RH |
Overall dimensions: 200×300×330(mm) |
Weight:6kg |
