High voltage divider

Products features

1.   High precision

Adopt precisionhigh-voltage film capacitors and precision glass glaze resistors, high inputimpedance, reducing the test current, low power

consumption, improve theinstrument's measurement precision and stability;

Signal processing part, using high performance OP to amplify signal, using the latesttechnology dual integral AD sampling,

four semiliquid crystal displays, thehighest resolution reaches 0.001kV, it is the upgrading production of statichigh voltage\ meter

2.   Goodanti-jamming performance

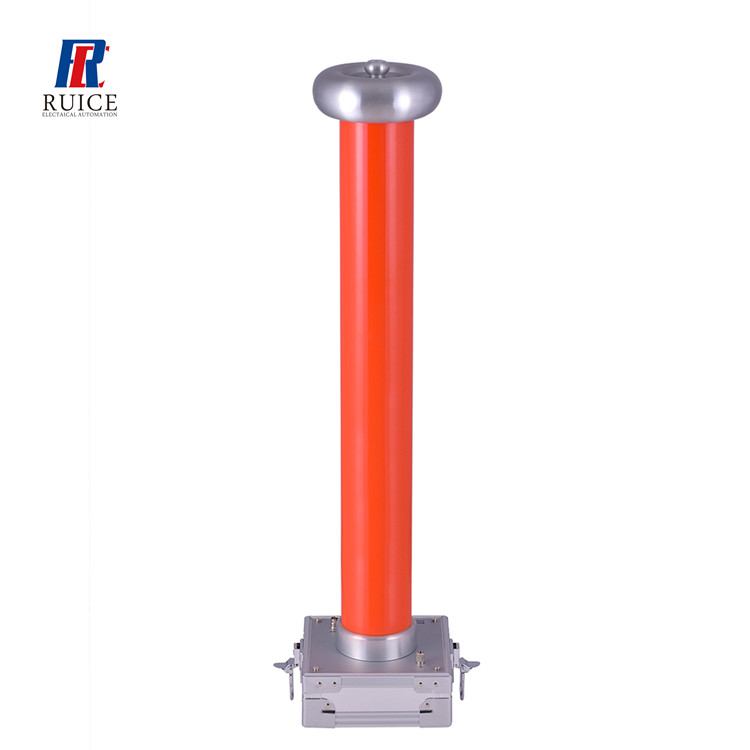

Adopt specialshielding technology. The surface of equalizing ring is smooth and glossy,effectively improve the electric field

distribution around the equalizing ringto prevent point discharge, improve the anti-jamming capability of measurementdata. The voltmeter adopts all-metal enclosed structure shielding, using highquality coaxial cable connect HV divider with the voltmeter, reduce the

impact

of HV on the indication values, so as to achieve high stability, high linearity

3.   Safe andreliable

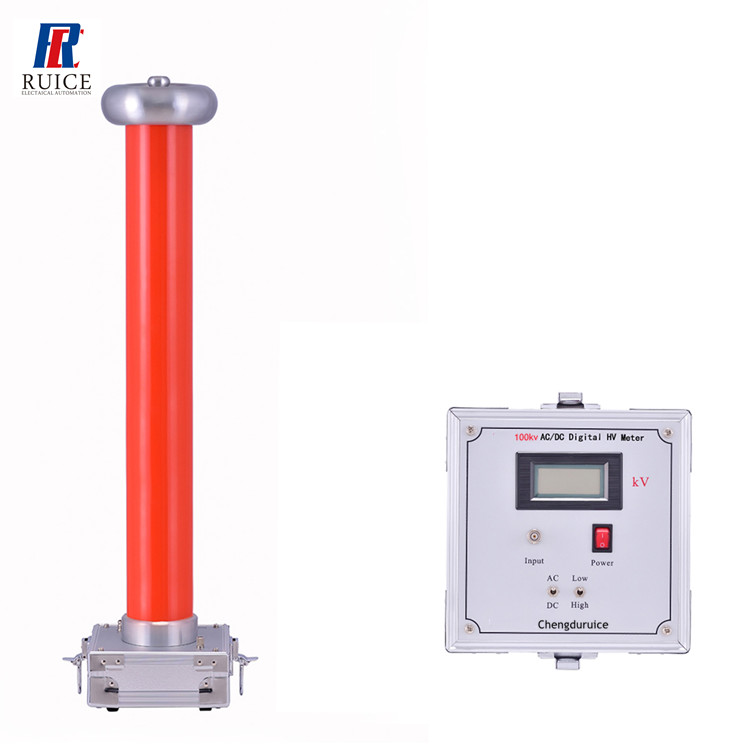

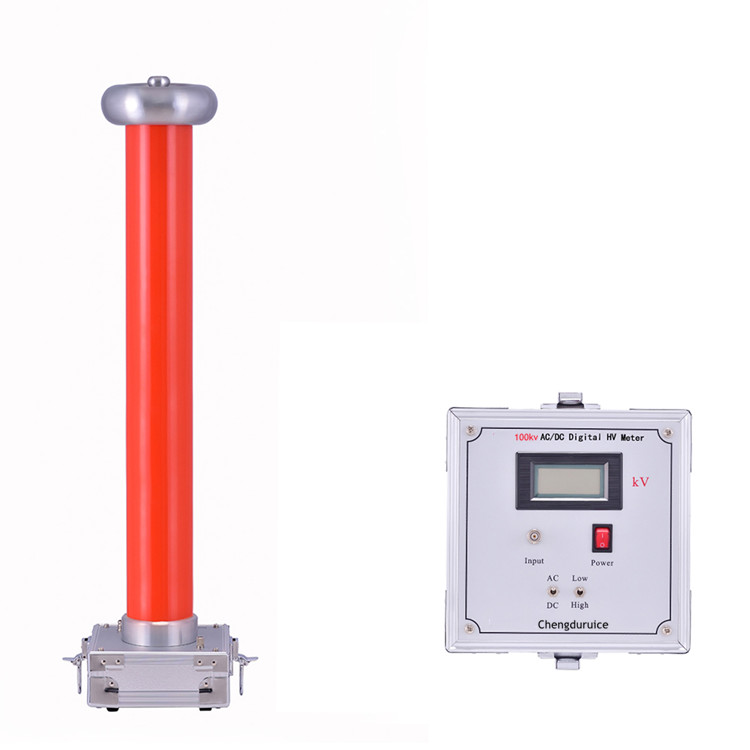

The instrumentis composed of high-voltage divider and voltmeter, high voltage divider usingDuPont filling materials, special casting process, smaller in structure, lighter in weight, to minimize internal partial discharge , higher reliability.There is no leakage problem. When working, use  high quality coaxial cableconnect HV divider with the voltmeter, safe and reliable

4.   Simpleoperation

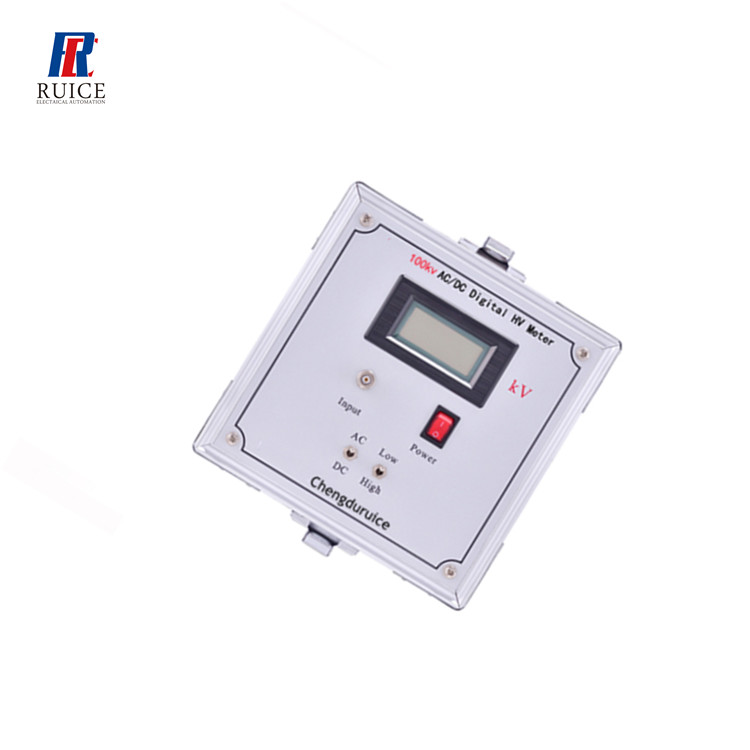

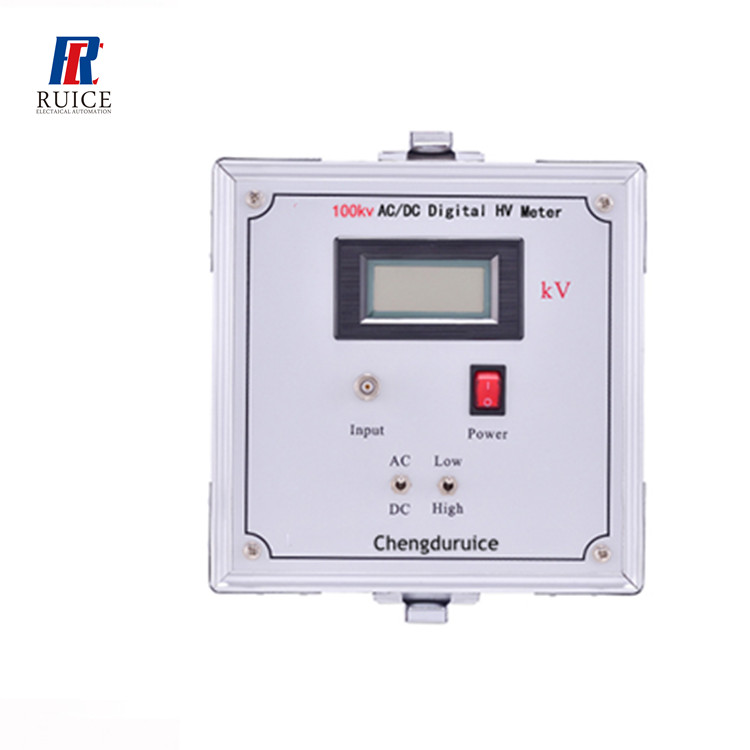

Adopt DIPswitch to switch high voltage and low voltage, AC and DC, convenient and quick.Four semi-liquid display direct shows measurement result, simple and intuitive.It is convenient for on-site testing work

5.   Easy to carry

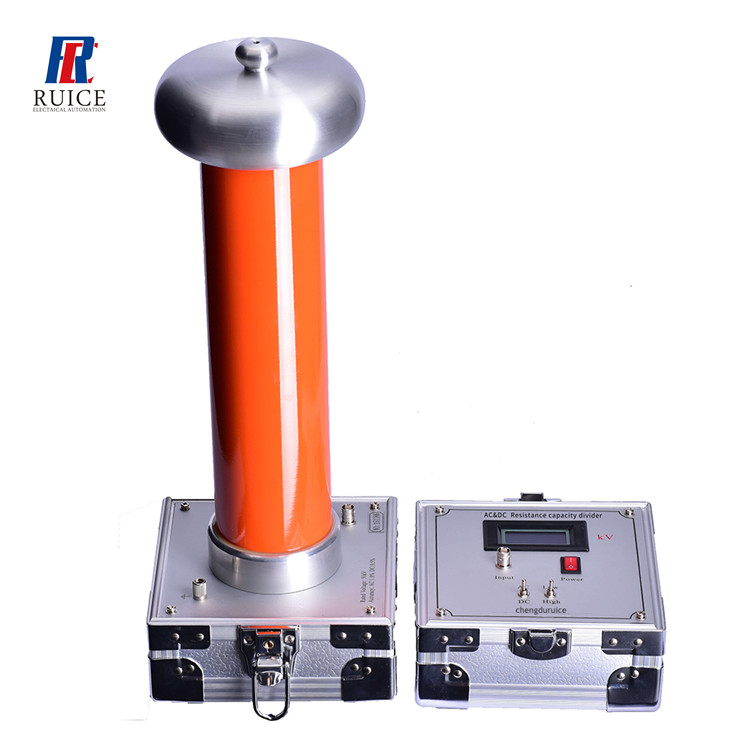

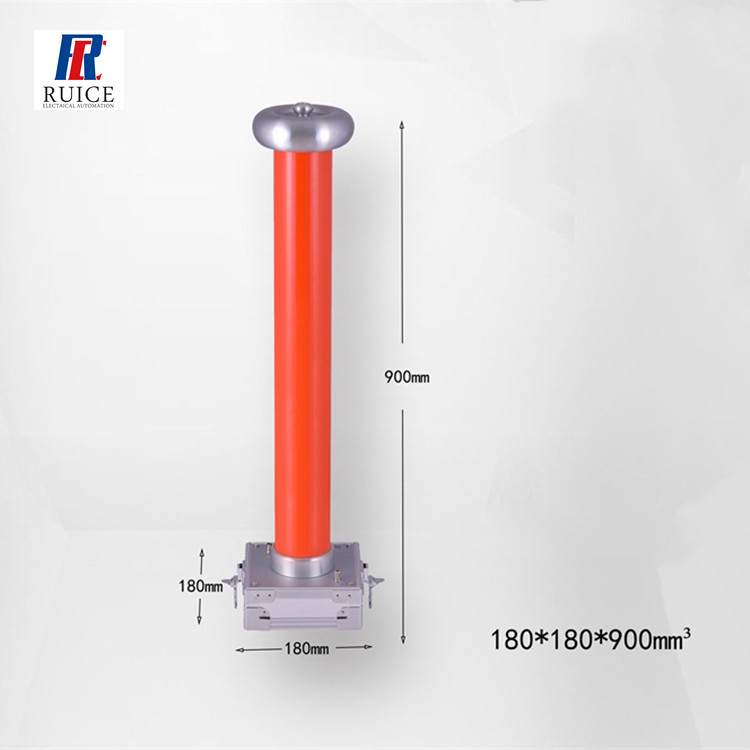

Use portablestructure, the whole chassis with aluminum box can be easily dismounted. Smallin size, light in weight, easy to  carry, easy to use

Product parameters

MainSpecifications
